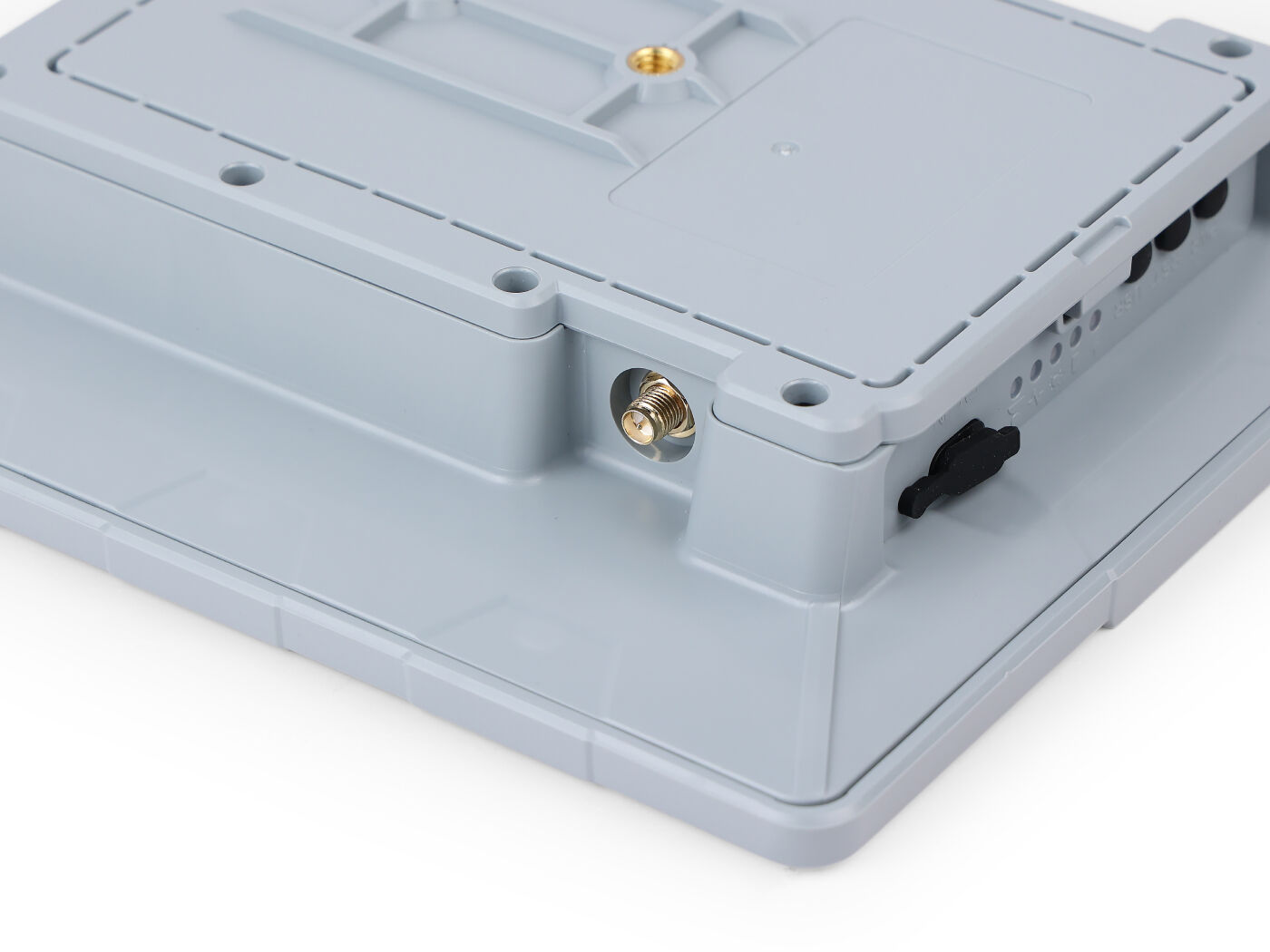

SenseCAP Solar Node P1-Pro for Meshtastic
$54.99
Note:
The SenseCAP Solar Node P1 – Pro has positioning function and four 18650 batteries. If you have your own batteries and don’t need positioning, please choose the SenseCAP Solar Node P1.
Efficient Solar Power Supply: Utilizes a 5W solar panel in combination with 4 18650 batteries with a capacity of 3350mAh…
Note:
The SenseCAP Solar Node P1 – Pro has positioning function and four 18650 batteries. If you have your own batteries and don’t need positioning, please choose the SenseCAP Solar Node P1.
- Efficient Solar Power Supply: Utilizes a 5W solar panel in combination with 4 18650 batteries with a capacity of 3350mAh each. This setup ensures continuous operation even in the absence of sunlight, effectively solving the problem of outdoor power supply.
- Pre-installed Meshtastic Firmware: The device comes pre-flashed with Meshtastic firmware at the factory.
- Precise Positioning and Tracking: Features a built-in XIAO L76K GPS module, enabling high – precision real – time positioning. It supports real – time sharing of location information, providing reliable location assurance for outdoor activities.
- Flexible Modular Expansion: Equipped with a Grove interface, it is convenient to connect various sensors, such as temperature and humidity sensors. This meets diverse monitoring needs and enables easy functional expansion.
- Robust Waterproof Design: With an IPX5 protection rating, it can effectively resist dust and water splashing. It can adapt to various harsh outdoor environments, ensuring stable operation of the device.
- Supports long – range transmission: Up to 8 – 9 km between two devices in open areas. It can seamlessly integrate into the Meshtastic ecosystem and be used as an outdoor node or repeater to easily expand the Mesh network, enhancing network coverage.
|
Main controller |
XIAO nRF52840 Plus(Nordic nRF52840, ARM® Cortex®-M4 32-bit processor with FPU, 64 MHz, 256KB RAM, 1MB Flash, 2MB onboard Flash) |
|
LoRa Module |
Wio-SX1262 Module(Semtch SX1262, TXOP=22dBm@862-930MHz) |
|
GPS Module |
XIAO L76K(Support GPS/GLONASS/Galileo) |
|
Antenna |
LoRa: Type: Rod-shaped rubber antenna Frequency range: 868-915MHZ Gain: 2dbi |
|
GNSS: GPS L1 C/A: 1575.42MHz GLONASS L1: 1602MHz BeiDou B1: 1561.098MHz |
|
|
Bluetooth 5.0 |
|
|
Solar Panel |
5W |
|
Interface |
Grove *1: IIC/GPIO/UART |
|
USB-C debugging |
|
|
Button |
Power on/off |
|
Reset |
|
|
User-defined |
|
|
LED |
Charging status indicator lights *2 |
|
Solar panel status indicator light *1 |
|
|
Mesh heartbeat light *1 |
|
|
User-defined *1 |
|
|
Power supply |
Type-C: 5V 1A |
|
Solar power supply: 5V 1A |
|
|
Waterproof rating |
IPX5 |
|
Battery |
4 x 18650 lithium batteries (3350mAh each) ● Supporting Type-C and solar charging. ● Discharge environment：-40～60°C ● Charging environment: 0-50°C |
|
Certification |
FCC、CE |
|
Dimension |
191.2 x 201.2 x 42.1 mm |
- Overall effect diagram
- Accessories diagram
- Interactive items
- Dimension diagram
- Outdoor Adventure: Send real-time location and text messages in areas without network coverage.
- Mesh Network Expansion: Serve as a Mesh relay node to expand the coverage of the existing Meshtastic network. Support multi-hop transmission, where data can be relayed through multiple nodes, enhancing network reliability.
- Educational Experiments: Learn about the development of Meshtastic and LoRa decentralized networks.
- Environmental Monitoring: Provide a Grove interface to connect sensors for remote monitoring of the environment (such as temperature, humidity, air quality, etc.).
|
SenseCAP Solar Node Main Unit |
x1 |
|
4 x 18650 Batteries (Built – in) |
x1 |
|
XIAO L76K GPS Module (Built – in) |
x1 |
|
Mounting Brackets (Universal Joint, Connector, Hoop Bracket, Hoop Ring) |
x1 |
|
2dBi 868 – 915MHz Rubber Rod Antenna |
x1 |
|
RF Cable: RP-SMA Male to RF-SMA Female-300mm |
x1 |
|
Black Type – C Cable |
x1 |
|
User Manual |
x1 |
| HSCODE | 8541402000 |
| USHSCODE | 8541406010 |
| UPC | |
| EUHSCODE | 8531202090 |
| COO | CHINA |
