Hybrid Energy Storage System with Fox ESS 10/15kWh LFP Battery, Solis EH1 5.0kW 48V Off-grid Hybrid Inverter, and (optionally) 6.8kW Solar Panels
$1,162.99
Revolutionise Your Energy Supply with the Off-grid Hybrid Energy Storage SystemThe Off-grid Hybrid Energy Storage System (Off-grid Hybrid ESS) is a cutting-edge solution designed to elevate your energy independence. Comprising Solis 5.0kW Off-grid/Hybrid Inverter, 2x or 3x Fox ESS LV52 5.12kWh 48V Battery Modules, and (optional) 12x 565W JA Solar Mono PERC…
Revolutionise Your Energy Supply with the Off-grid Hybrid Energy Storage System
The Off-grid Hybrid Energy Storage System (Off-grid Hybrid ESS) is a cutting-edge solution designed to elevate your energy independence. Comprising Solis 5.0kW Off-grid/Hybrid Inverter, 2x or 3x Fox ESS LV52 5.12kWh 48V Battery Modules, and (optional) 12x 565W JA Solar Mono PERC Half-Cell MBB LR MC4 Panels (custom quantities of solar panels are available on request), this system offers a robust foundation for efficient energy management. A thoughtfully assembled basic set of cables is included for a hassle-free installation experience.
Solar Panels, strategically positioned on rooftops or the ground, harness the sun’s energy, generating a direct current that efficiently charges the battery. This stored energy undergoes seamless conversion through the Hybrid Inverter, transforming it into alternating current for use by homes or small businesses connected to the solar panels. The Hybrid ESS intelligently manages excess energy, either storing it in the battery or seamlessly directing it into the National Grid.
Unlock the potential of home energy storage systems, enabling you to use generated electricity precisely when needed. The battery bank optimizes renewable energy from solar photovoltaic (PV) panels or a wind turbine. For instance, electricity generated during the day can be stored, ensuring a sustainable power source for evening activities like boiling the kettle or powering electronic devices.
Tailor the Hybrid ESS to your unique needs, considering current energy usage, the size of existing generation technologies, and future plans such as acquiring an electric vehicle (EV) or implementing a heat pump for home heating. Empower your energy future with the Hybrid ESS.
- SOLIS EH1 5KW ENERGY STORAGE OFF-GRID/HYBRID 5G INVERTER (S5-EH1P5K-L) is the combination of a solar inverter and a battery inverter into a single piece of equipment that can intelligently manage power from your solar panels, battery, and the grid at the same time. The SOLIS Off-grid/Hybrid inverter is a good choice for on-grid / off-grid integrated storage solutions.
- SOLIS S5-EH1P5K-L OFF-GRID/HYBRID INVERTER provides 5.0kW in on-grid mode and 5.0kW back-up power to support essentials in off-grid mode, as well as 24-hour fully intelligent energy management and real-time PV system status monitoring.
- SOLIS OFF-GRID/HYBRID INVERTER UNINTERRUPTED POWER SUPPLY Switches to the battery in less than 20ms if the grid is down; Intelligent EMS function, improving battery’s reliability; Remotely control & upgrade function, making digital power plant maintenance at your fingertips.
- SOLIS OFF-GRID/HYBRID INVERTER – 5 WORKING MODES:
- SELF-USE MODE – Maximise the usage of solar energy from the Solar Panels.
- FEED IN PRIORITY MODE – Feed the excess solar energy to the Grid in order to gain subsidies.
- BACKUP MODE – Keep the Battery at a certain SOC (State of Charge) and only use it during a power outage.
- OFF-GRID MODE – For Off-grid use and AC-Grid Port Disconnected.
- EPS (EMERGENCY POWER SUPPLY MODE – required an external Solis NPS switching Box to achieve switching function) – With Grid: Only the AC grid port will output power; the backup port is disabled. Without Grid: Only the backup port will output power; the AC grid port is disabled.
- FOX ESS LV52 5.12kWh 48V LONG LIFEPO4, EXPANDABLE, HIGH-EFFICIENCY STORAGE BATTERY has a rated life span of more than 6000 cycles (90% Depth of Discharge); Storage capacity is expandable to 20.48kWh (4 modules in parallel); 98% charge/discharge efficiency; Easy plug & play installation.
- FIVE YEARS GUARANTY FOR FOXESS LV52 5.12kWh 48V STORAGE BATTERY Fox warrants that the Product retains at least 60% of Nominal Energy for either 10 years after the date of the initial installation or for a minimum Energy Throughput of 15.6MWh. when the battery system is operated under normal use according to the specifications outlined in the Product manual.
-
JA SOLAR 565W Mono PERC Half-Cell MBB LR MC4 Solar Panel is a power source which captures up to 4.5kW DC electricity and then converts it to AC electricity to use immediately in the home or a business, store excess energy in the battery or feed into the National Grid. JA SOLAR 565W Mono PERC Half-Cell MBB LR MC4 Solar Panel with 30mm frame features JA Solar’s innovative design with the high panel efficiency and power output of monocrystalline cells, enabling you to get more out of the space available – helping to lower your energy bills and shorten the payback time through increased yield and lower costs.
- DURABLE, DUST & WATER RESISTANT SOLAR PANELS The JA SOLAR 565W Mono PERC Half-Cell MBB LR MC4 Solar Panel solar panel is dust and water-resistant to endure all weather conditions. Anti-reflective and anti-soiling surface reduces power loss from dirt and dust; Heavy snow load up to 5400Pa and increased wind load up to 3600Pa. 12-year product warranty and 25-year extra linear power output warranty.
- FREE DELIVERY 4-5 WORKING DAYS within the UK (longer to the Highlands, islands and Northern Ireland).
|
JA SOLR 565W Mono PERC Half-Cell MBB LR MC4 Solar Panel
| Rated (Peak) Power (Wp): 565W in Standard 1000w/m2 solar light |
| Open Circuit Voltage (Voc): 50.50V |
| Voltage at Maximum Power (Vmp): 41.68V |
| Short Circuit Current (Isc): 14.31A |
| Current at Maximum Power (Imp): 13.56A |
| Efficiency: 21.4% |
| Cell Type: Monocrystalline Silicon |
| Connector Type: MC4 |
| Certification: DC IEC 1000V |
| Net Weight: 28kg |
| Size: 2333 X 1134 X 30 mm |
FOX ESS LV52 BATTERY
| Battery Type: LiFePO4 Prismatic Cell |
| Nominal Capacity: 5.12kWh |
| Nominal Voltage: 51.2V |
| Operating Voltage: 46.4 – 58.4V |
| Recommended Discharge Current: 50A |
| Max. Discharge Current: 100A |
| Battery Pack Round-Trip Efficiency: >95% |
| Depth of Discharge: 90% |
| Cycle Life: >6000 (25°C, @90% DOD, 0.5C charging/discharging) |
| Installation Location: Indoor (Stand) |
| Operating Temperature Range: Charge 0 ~ +55°C Discharge -10 ~ +55°C |
| Humidity: 5% to 95% (No Condensing) |
| Ingress Protection: IP21 |
| Net Weight: 49.5kg |
| Size: 420 * 620 * 184.5mm |

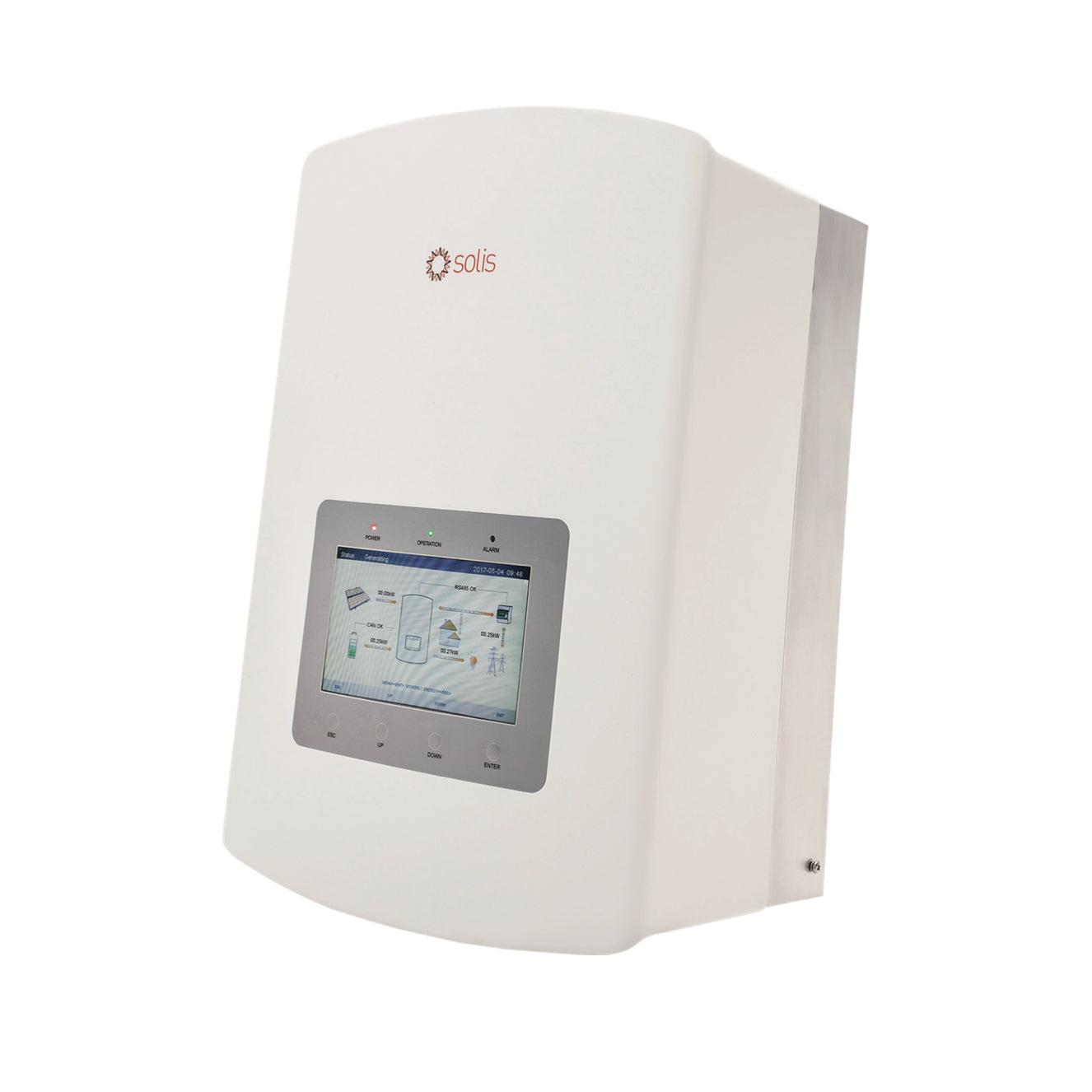

SOLIS S5-EH1P5K-L OFF-GRID/HYBRID INVERTER
| SOLAR INPUT |
| Max. Solar Power (Wp): 8.0kW |
| Max. Input Voltage: 600V |
| Rated Voltage: 330V |
| Start-up Voltage: 120V |
| MPPT Voltage Range: 90-520V |
| Max. Input Current: 15A/15A |
| Max. Short Circuit Current: 22.5A/22.5A |
| MPPT number/Max. input string number: 2/2 |
| AC INPUT (GRID SIDE) |
| Input Voltage Range: 187-265VAC |
| Max. Input Current: 34.5A/33A |
| Frequency Range: 45-55Hz/55-65Hz |
| AC Connection: Quick connection plug |
| AC OUTPUT (BACK-UP) |
| Rated Output Power: 5.0kW |
| Back-up Switch Time: 20ms |
| Operation Phase: 1/N/PE |
| Rated Output Voltage: 220-230VAC |
| Rated Frequency: 50Hz |
| Rated Output Current: 23A/22A |
| THDv (Linear Load): <2% |
| AC OUTPUT (GRID SIDE) |
| Rated Output Power: 5.0kW |
| Operation Phase: 1/N/PE |
| Rated Output Voltage: 220-230VAC |
| Rated Frequency: 50Hz |
| Rated Grid Output Current: 22.8A/21.7A |
| Max. Output Current: 25A |
| Power Factor: >0.99 (0.8 leading – 0.8 lagging) |
| THDv (Linear Load): <2% |
| EFFICIENCY |
| Max. Efficiency: >97.1% |
| EU Efficiency: >96.5% |
| GENERAL DATA |
| Dimensions (W*H*D): 333*505*249 mm |
| Weight: 18.3kg |
| Operating Temperature Range: -25 ~ +60°C |
| Ingress Protection: IP65 |
| Cooling: Natural Convection |
| Display: 7.0″LCD colour screen display |
| Communication: RS485, Optional: Wi-Fi, GPRS |
| 1x SOLIS S5-EH1P5K-L Off-grid/Hybrid Inverter 220-230VAC, 5.0kW (Grid side), 5.0kW (Back-Up) – 1 X Box |
| 2x or 3x FOX ESS LV52 LiFePO4 Battery 5.12kWh (51.2V 100Ah) – 2x or 3x Box, |
| 1x Set of Cables, Switches, and Disconnectors – 1x X Box, |
| (Optional) 12x A SOLAR 565W Solar panel – 1 X Double pallet |
