Used Takahashi EM-200 Goto Mount on Tak Wooden SE-LL tripod

This is a used Takahashi EM-200 EQ mount and Tak SE-LL wooden tripod in very good condition.  It’s an older mount, and it’s not pristine:  the mount and tripod have some wear and tear on them from normal use.  But, of course, these condition issues do not affect the operation of the mount.

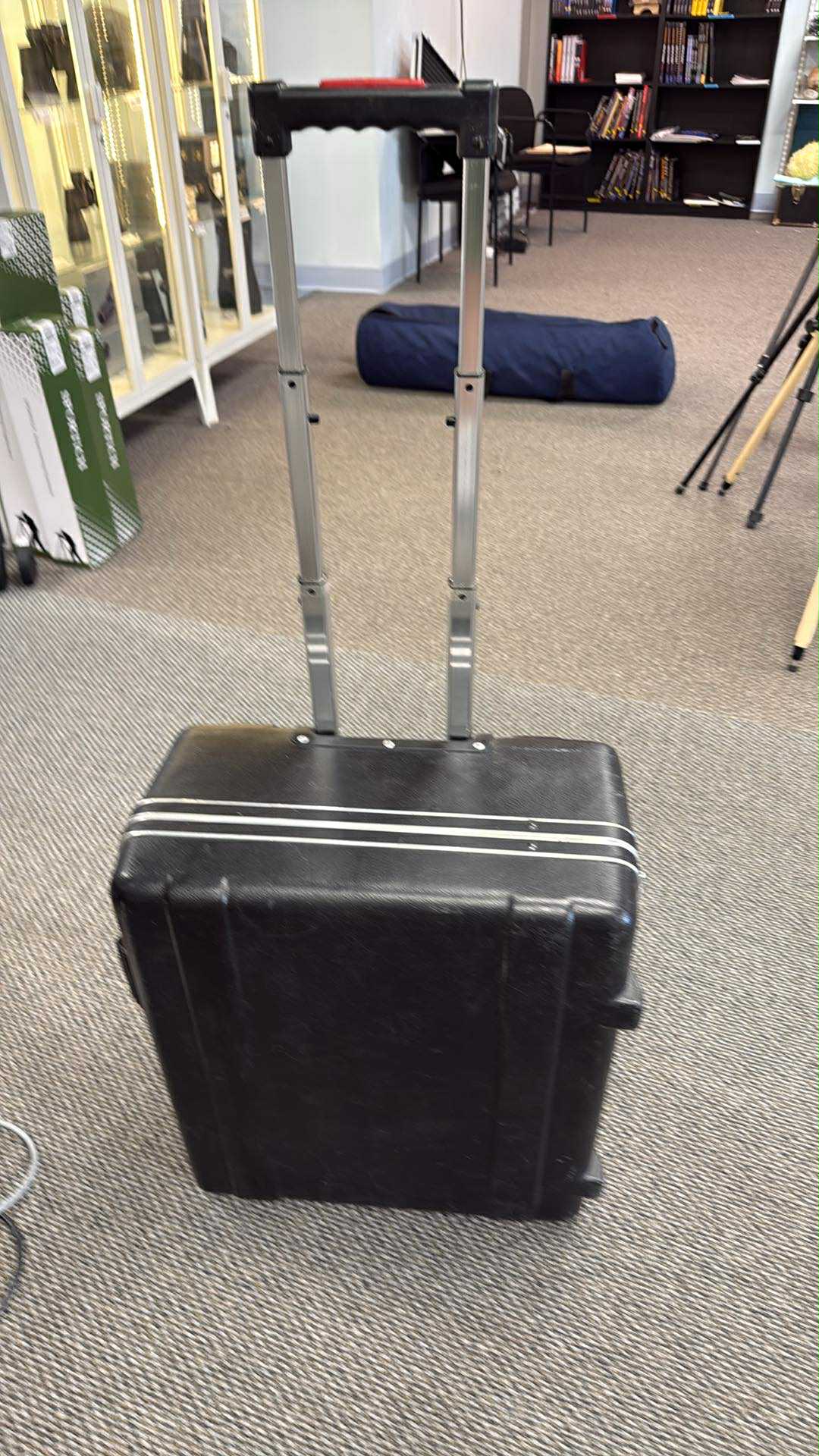

It has an optimal 33 lb. payload capacity, which can be pushed to 40 lbs.  Includes a 12V AC power adapter, handset, and 1 counterweight. It also includes a foam-lined case on wheels for the mount head, and an Orion padded case for the tripod legs.

They don’t make these anymore, so get it while it’s here!  Please come in and take a look at this mount for yourself.

This item does not ship; it is for in-store pickup only.  There are no returns on this item.





The EM-200 is an accurate, precision-built GoTo German equatorial mount that provides a stable platform for payloads of up to 40 pounds. It is an ideal mount for any type telescope, be it a refractor, reflector, or cassegrain.

The Takahashi SE series tripods are designed specially for the serious astrophotographer and are compatible with the Takahashi EM-11 and EM-200 mounts.  These tripods have wooden legs made from genuine mahogany to minimize vibrations that could adversely affect long exposure photography.  Not only are they highly functional, but they are a statement piece as well!

SE-LL model – height to EM-200 adapter = 53.94 inches



Includes:

• EM-200 mount head
• Built in polar finder
• Dual motorized drives with shaft encoders
• Hand controller
• 5 kg counterweights x1
• RS232 cable x1 (TRS02320)
• Power cable x1
• Takahashi SE-LL wooden tripod

Mount Performance

Load capacity (max)	18 kg
Load capacity (optimal)	15 kg
Goto capability	Yes
Tracking accuracy	±5 arcseconds
Worm gear shaft cycle	8 minutes
Slow motion speed	0.1x to 1.9x sidereal rate
High speed	700x sidereal rate
Stepper motor accuracy	240 pulses per second
Elevation adjustment	0º to 50º north/south
Polar finder accuracy	2 arcminutes
Polar finder field of view	4.45 degrees
Autoguiding	ST-4/7 compatible

Mount Specifications

Weight	15 kg (without counterweight)
Counterweight	5 kg x 1
Operating voltage	12 VDC

Loading capacity is specified in terms of intruments weight.
