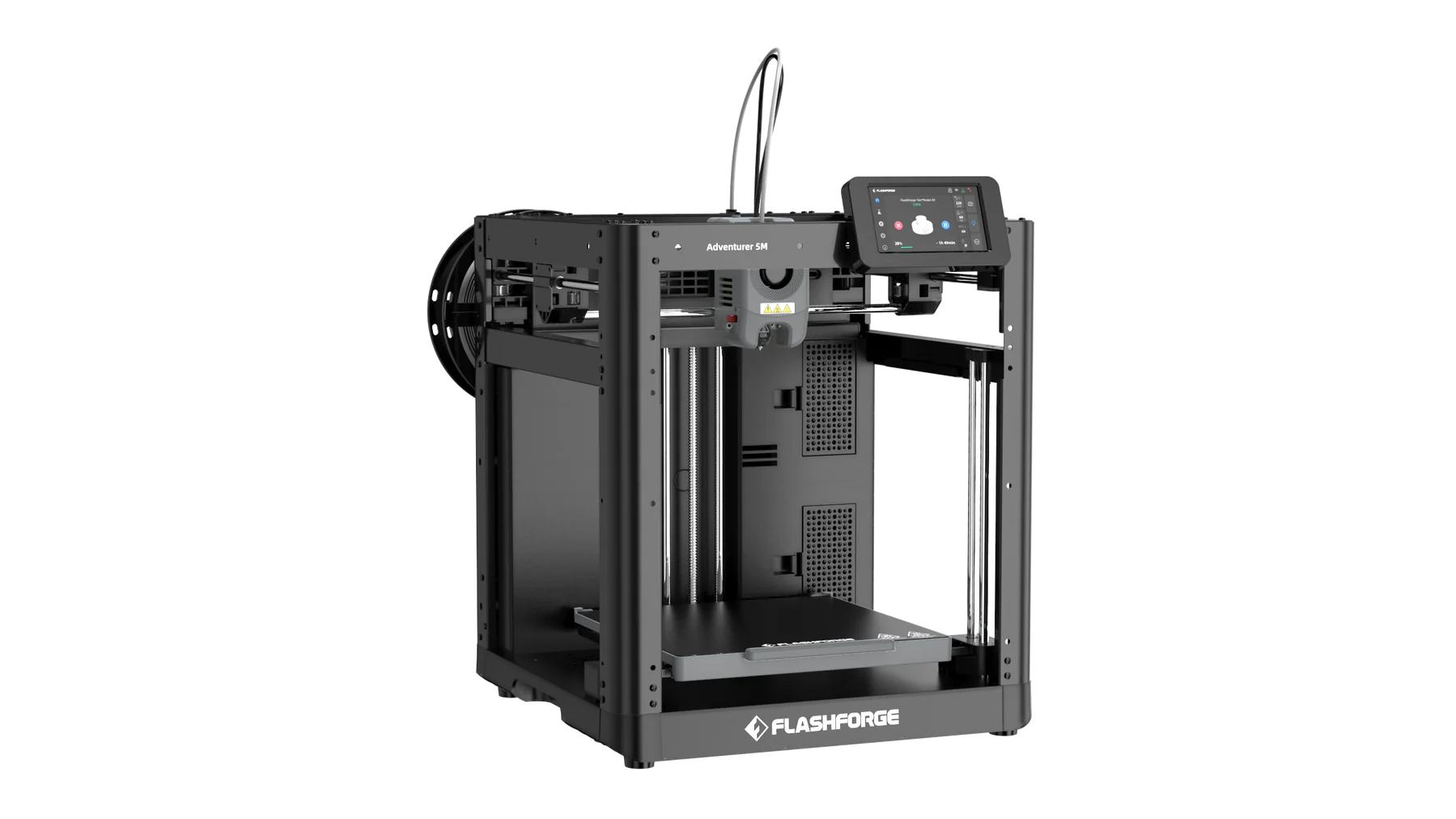

FlashForge Adventurer 5M 3D Printer

Adventurer 5M 3D Printer

Unlock The Potential

• Fully auto leveling and calibration
• High speed printing and acceleration
• Vibration compensation
• Sturdy printer construction
• PEI Removable and Flexible Build Plate (Double Sided)
• Quick Release Nozzle
• Compatible Materials: PLA, PETG, TPU, PLA-CF, PETG-CF, High Speed PLA
• Compatible with FlashPrint cloud management for multiple printers and Polar Cloud

Auto Leveling and Calibration

Flashforge Adventurer 5M Pro has an advanced auto-leveling system that measures the nozzle height relative to the build plate – automatically compensate for any discrepancies and providing a flawless first layer every time.

Maximum Travel Speed

600mm/s

Maximum Acceleration

20000mm/s²

Nozzle flow

32mm³/s

Up to 12 times faster

Than Traditional FDM 3D Printers

Enhanced Compatibility

• Various printing modes and materials. Allows you to streamlining the slicing process.
• Print effortlessly. Monitor the print status, and manage the printer online.
• Cloud control. Monitoring your printing progress.

High-speed Filament

Adventurer 5M supports high-speed filament, you can try them out and enjoy the fun of high-speed printing.

Filament Run-out Reminder

Pause printing when filament runs out and prompt you to change filament.

Power Loss Recovery

Ensure seamless printing progress in case of power outages.

Integrated Printing Management

FlashPrint 5 enables remote multi-device control, print classification management, and remote print status monitoring.

Specifications

Printing

• Number of Extruders: Single
• Print Technology: FFF (Fused Filament Fabrication)
• Print Volume: 220 x 220 x 220 mm (8.7 x 8.7 x 8.7 in)
• Print Precision: ±0.2 mm
• Positioning Precision: X/Y-Axis: 0.025 mm; Z-Axis: 0.0025 mm
• Nozzle Diameter: 0.4 mm (Standard); 0.25 mm, 0.6 mm & 0.8 mm (Optional)
• Layer Thickness: 0.1 ~ 0.4 mm
• Print Speed: Up to 300 mm/s
• Extruder Speed: Up to 600 mm/s
• Acceleration: 20,000 mm/s²
• Maximum Extruder Temperature: 280°C (536°F)
• Filament Compatibility: PLA, PETG, TPU (0.4mm nozzle), PLA-CF, PETG-CF (0.6/0.8mm nozzle)
• Heated Build Plate: Yes

Mechanical & Dimensions

• Screen: 4.3-inch Touch LCD Screen Print Platform: PEI Build Plate (Double Sided)
• Printer Dimensions: 363(L) x 376(W) x 413(H) mm, (14 x 15 x 16 in)
• Package Dimensions: 440(L) x 440(W) x 490(H) mm, (17 x 17 x 20 in)
• Net Weight: 24 LBS (10.8 kg)
• Gross Weight: 31 LBS (14 kg)

Electrical

• Power Supply: AC 100-240V / DC 24V / 13.3A, 320W
• Connectivity: USB Stick, Wi-Fi, Ethernet, and Cloud Printing
• Package Dimensions: 440(L) x 440(W) x 490(H) mm, (17 x 17 x 20 in)

Software

• Slicing Software: FlashPrint / Polar Cloud /Cura
• File Input Format: 3MF / STL / OBJ / FPP / BMP / PNG / JPEG
• File Output Format: GX / G
• Supports (OS): Win7/8/10/11, Linux supports Ubuntu 20.04 and later, Mac OS 10.9 and later

What’s in the Box

• Adventurer 5M 3D Printer
• 50G PLA Filament
• Power Cord
• Quick Start Guide
• Screw Driver
• Hex Wrench Set
• Grease
• USB Drive
• Leveling Tool
• Filament Holder
• Pliers
• Glue
