Kang Industrial HVP-61, Rotary Table with Dividing Plate DP-1, 6 Inch Rotary Table Milling Machine Horizontal Vertical Indexing Plate

Name: Kang Industrial HVP-61, Rotary Table with Dividing Plate DP-1, 6 Inch Rotary Table Milling Machine Horizontal Vertical Indexing Plate
SKU: LBQ21656442
Availability: InStock

$155.99

Kang Industrial Rotary Tabel with Dividing Plate HVP-616″ Rotary Table, with dividing set of 3 plates Features6″ Horizontal & Vertical rotary table with 4 slotsHardened and ground work 90:1 ratio360° table graduation100 mm table heightCenter bore MT2Comes with 3 pcs of index plateNumber of holes of the dividing/Index plate HV-6 Installation dimension ABCDEHMN 155 mm160mm100 mm1150 mm16…

SKU: LBQ21656442 Category: KANG INDUSTRIAL PTY LTD

Description
Reviews (0)

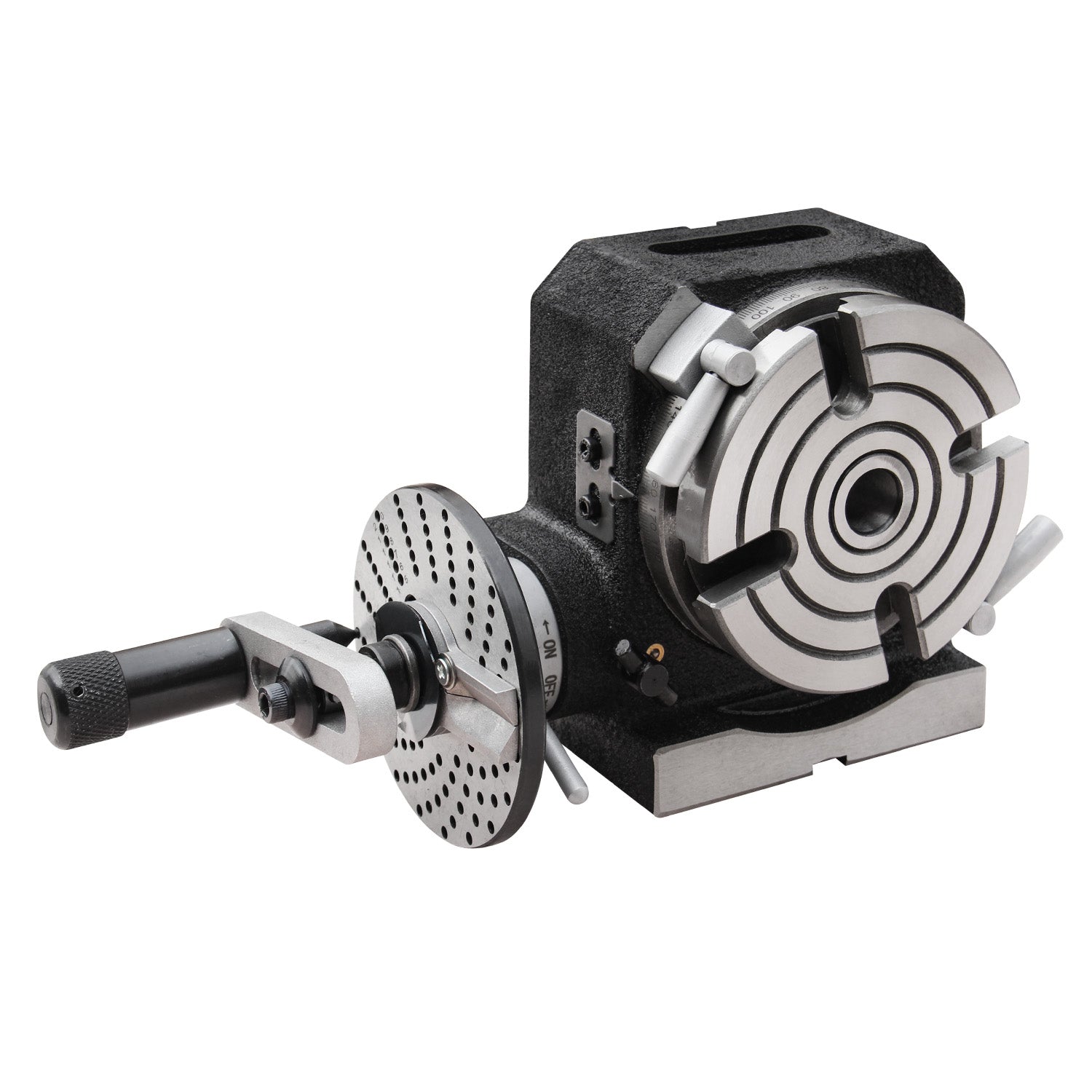

Kang Industrial Rotary Tabel with Dividing Plate HVP-61

6″ Rotary Table, with dividing set of 3 plates

Features

6″ Horizontal & Vertical rotary table with 4 slots

Hardened and ground work 90:1 ratio

360° table graduation

100 mm table height

Center bore MT2

Comes with 3 pcs of index plate

Number of holes of the dividing/Index plate

HV-6 Installation dimension

A	B	C	D	E	H	M	N
155 mm	160mm	100 mm	1150 mm	16 mm	86 mm	MT2	78 mm

Specifications

SKU	162312
Model	HVP-61
Table dia.	155 mm
Morse taper of the center hole	MT2
Height of center for vertical mounting	100mm
Width of T slot	14 mm
Adjacent angle of T-slot	90°
Width of the locating key	16 mm
Modules of worm and worm gear	1
Transmission ratio of the worm gear	1:90
Graduation of the table	360 °
Rotating angle of the table with one revolution of the worm	5
Index Plate A	15, 16, 17, 18, 19, 20
Index Plate B	21, 23, 27, 29, 31, 33
Index Plate C	37, 39, 41, 43, 47, 49
Packing size	29x24x13 cm
N.W./G.W.	14/15 kg
