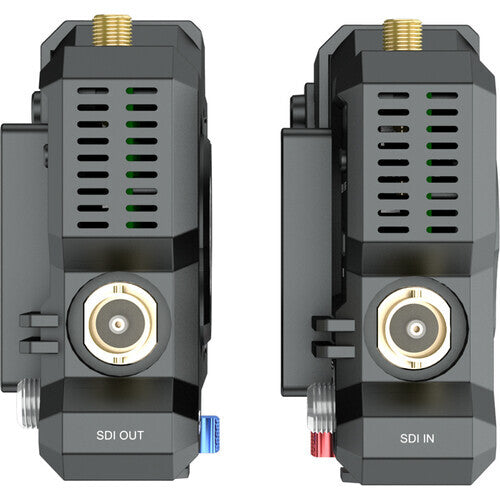

Hollyland Mars 400s Pro SDI/HDMI Wireless Transmission System

Hollyland Mars 400S Pro 1080p HDMI and SDI Transmission System 5G Wireless Video & Audio Transmission 400ft 80ms Latency APP Support Android & iOS Direct Video for Live Stream (Transmitter+Receiver)
Features:

• The Mars 400S pro connects to your camera via a full HDMI port or SDI port, accepts HDMI 1080p 60fps or SDI 1080p 23.98sf video input, supports to transmit up to 400ft in open areas. Also, the Hollyland Mars 400s pro supports optimal channels a click away on RX and APP.
• 80ms Incredibly Low Latency, hollyland mars 400s pro system supports bandwidth up to 20 MHz, supports up to 4 phones & tablets real-time monitoring with professional monitor features, such as waveform, focus peaking, zebra, zoom in/out, 3D luts, etc.
• Lower gravity center, and much more stable & convenient installation with the brand-new transverse design, integrated cold shoe and the OLED display screen displays all device status.
• Mars 400s pro offer dual power supply options with Various L-series battery, 5-12V type-C, and 6-16V DC power options.
• Video feed straught out of RX for ive streaming without further encryption and decryption via a video capture device.

Specification:

100m Transmission Range between TX and RX(LOS)
75m Transmission Range between TX and APP(LOS)
Integrated Cold Shoe for Quick Installation
Lowest Transmission Latency 0.08s
SDI Input HDMI Input at TX
SDI Output HDMI Output at RX
Supports DC Power Supply, USB Type-C Power Supply and Battery Power Supply
1 Transmitter Supports 2 Receivers
1 Trans mitter Supports 1 Receiver and 2 APPs Monitoring
1 Transmitter Supports up to 4 APPs Monitoring Without Receiver)
Supports Smart Channel Selection
Supports APP Firmware Upgrade
Direct Data Stream from RX for Live Streaming

Transmitter:
Supply Interfaces: DC Power Input:6-16V; USB Type-C Power Supply:5V/2A; Battery Power Supply:6-16V DC
Power Consumption: <11W
Weight: 206g
Dimension: (L*W*H): 110*72*33.5mm (The Battery Plate Exclude)
Input / Output Video Format:
HDMI: 480p60, 576p50, 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.9/30, 1080p50/59.94/60
SDI: 1080p60/59.94/50(Level A), 1080p60/59.94/50(Level B), 1080i60/59.94/50, 1080p30/29.97/25/24/23.98, 1080PsF25, 720p60/59.94/50, 1080PsF24/23.98
Frequency: 5GHz
Modulation Mode: OFDM
Transmission Power: Maximum 21dBm
Transmission Latency: 0.08s
Bandwidth: 20MHz

Receiver:
Supply Interfaces: DC Power Input:6-16V; USB Type-C Power Supply:5V/2A; Battery Power Supply:6-16V DC
Power Consumption: <7W
Weight: 206g
Dimension: (L*W*H): 110*72*33.5mm (The Battery Plate Exclude)
Input / Output Video Format:
HDMI: 480p60, 576p50, 720p50/60, 1080i50/60, 1080p24/25/30, 1080p50/60
SDI: 1080p60/50(Level A), 1080i60/50, 1080p30/25/24, 720p60/50, 1080i50(1080PsF25/24/23.98input), 1080i60(1080PsF30/29.97input)
Frequency: 5GHz
Modulation Mode: OFDM
Receiver Sensitive: -80dBm
Transmission Latency: 0.08s
Bandwidth: 20MHz

Package Including:

• 1 x Mars 400S PRO Transmitter
• 1 x Mars 400S PRO Receiver
• 5 x Antenna
• 1 x User Guide
• 1 x DC Power Adapter
