OKM Visualizer 3D Studio

OKM Visualizer 3D Studio

Software Features at a Glance

The innovative visualization software offers users a wide range of options, both in processing and in displaying and evaluating the scan data:

• Import scan data.
• Edit properties and add notes.
• Adjust views (rotate, scale, move).
• Use predefined viewports.
• Optimize scan data with modifiers.
• Select from various user interface designs.
• Assign soil types (changes depth calculation and visualization).
• Select measured values.
• Set bookmarks (PRO only).
• Export data as PDF (PRO only).
• Activate tablet mode.

Import Scan Data

Transfer data from the OKM detector or ground scanner via USB cable or Bluetooth and then edit it in the software. Selected detectors (Rover UC, eXp 6000) create the scan file already in .v3d format during the measurement. This can be opened directly with the software.

Edit Properties and Add Notes

In addition to the measured values, basic data such as date, length and width of the measurement field and (if activated) the associated GPS position are saved for each measurement. This information can be supplemented in the software with further information on the measurement or with information on special measuring field properties.

Adjust Views (Rotate, Scale, Move)

The completed scan graphic can be positioned, enlarged and rotated according to individual requirements. Thus, on the one hand a top view is possible (2D), on the other hand three-dimensional views are also possible by rotating. For easy handling, you will find preset standard views to click on in the left toolbar.

Thanks to preset viewports, the scan image can be divided among several windows. This means that several perspectives can be viewed at the same time. In order to focus on a specific area, different windows in different sizes can be selected. Alternatively, the display area can be limited to a single window.



Optimize Scan Data with Modifiers

Using the four predefined modifiers (interpolation, subdivision, signal correction, rotation correction), the measured values are automatically corrected, extended by additional measuring points and recalculated in order to optimize the display and facilitate the search for potential find objects within the measured data.

Select from Various User Interface Designs

For different ambient light conditions, the software offers four user interface designs to choose from. Select the one that suits your taste!



Assign Soil Types (changes Depth Calculation and Visualization)

With 12 OKM standard soil types and 12 additional USDA soil types, the new Visualizer 3D Studio software offers extended functionality: By selecting the appropriate soil type, the calculation of the depth values is adjusted according to the stored soil properties such as dielectric constant, relative permeability, homogeneity, mineralization and moisture. The selection of the correct soil type is essential, as the calculation of the measurement depth is significantly influenced by it. For a better visual evaluation the deposited soil textures can be mapped.



Select Scan Values

To select individual scan values, not only the arrow keys but now also the mouse can be used. With this function, details of the selected measured value can be viewed more easily. Furthermore, a bookmark can be set on this point that can be provided with additional information.



Set Bookmarks (PRO only)

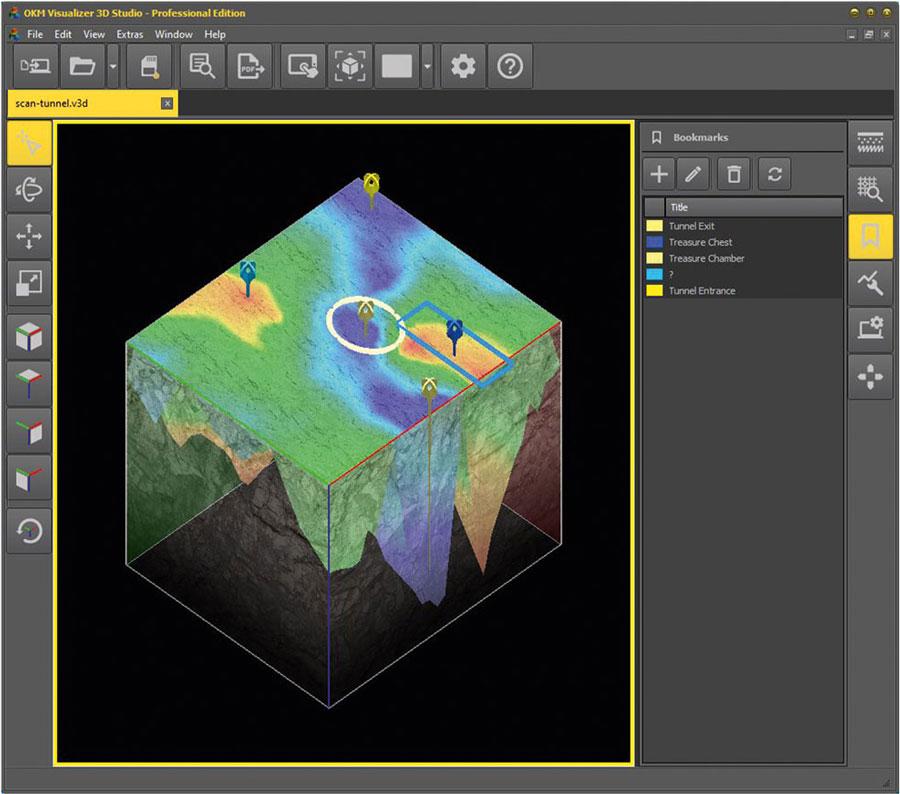

Bookmarks can be used to highlight areas of interest and potential findings. A pin on the selected measurement marks a point for which further details can be noted. Optionally, a rectangle or circle can be placed around the point to highlight an entire area.



Export Data as PDF (PRO only)

Until now, the scan image was only available to be printed directly or exported as an image. This function has been adopted for the Standard Edition and even extended for the Professional Edition: With the PRO version, you can have your scan data automatically compiled. Decide for yourself whether with or without image, scan information, details on soil types and/or set bookmarks.

Activate Tablet Mode

When using the Visualizer 3D Studio software on a tablet or laptop with a smaller screen, it is recommended to activate the tablet mode. This will optimize the display of the import process and improve its visibility.

New Features for Advanced Ground Scan Analyses

The OKM software has continued to advance along with the detectors and the requirements of the users. Thus, numerous useful functionalities have been added to facilitate the use of the software and to make the evaluation of the scan data more efficient.

New features include:

• Benefit from additional visualization options.
• Set Individual Bookmarks.
• Add Individual Soil Types.
• Include Scan Field Photo.
• Generate PDF Report.
• Additional Preset Soil Types.
• Advanced Settings.

Discover more advantages of the new analysis software and its editions Standard and Professional!

*NEW Visualizer 3D Studio PRO can also visualize measurements of GeoSeeker and Gepard GPR.
