RAK5166/RAK5167 Concentrator Module: M.2 Form Factor Innovation for LoRaWAN® Applications ,SX1303 LoRa Core (USB, GPS, LBT) | RAK5166 / RAK5167

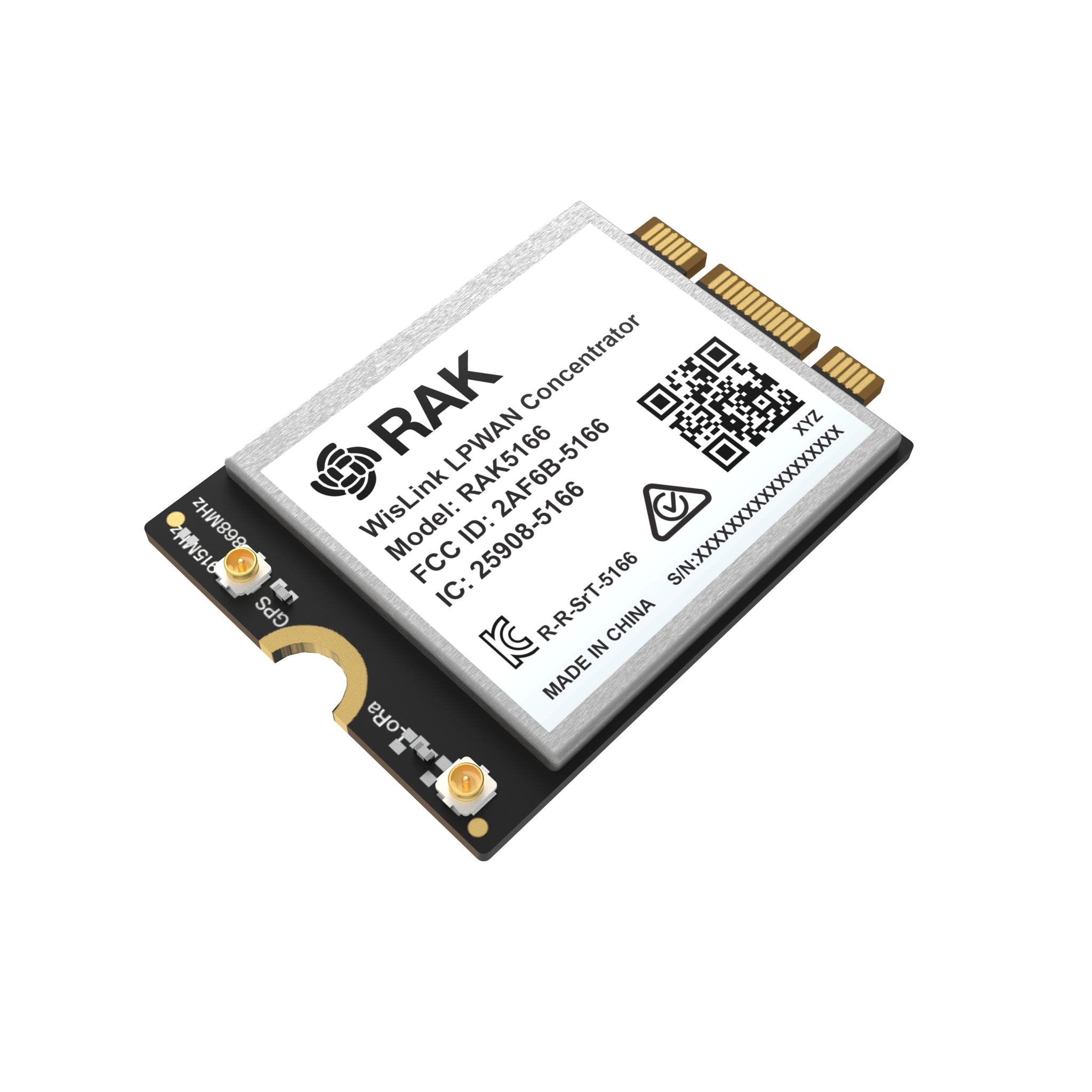

The RAK5166/RAK5167 LPWAN Concentrator module stands as a pioneering force in the RAK IoT connectivity portfolio. This 8-channel LoRa concentrator module marks the first to support M.2 slots in 3042 and 2280 form factors, rendering it a versatile choice for industrial and IoT applications. Powered by the advanced SX1303 chipset, RAK5166/RAK5167 is engineered to transform industrial PCs and IoT gateways into high-performance LoRaWAN gateways, catering to the evolving needs of modern enterprises.

Key Features

• M.2 Slot Support: Exceptionally designed to accommodate the most popular 3042 and 2280 M.2 standards, offering unmatched flexibility for system integrations.
• 8-Channel LoRa Concentration: Leverages the capabilities of the SX1303 chipset for efficient and robust LoRaWAN communication.
• Compact and Space-Efficient: Its sleek M.2 form factor ensures minimal space usage, ideal for densely packed industrial environments.
• Plug-and-Play Integration: Simplifies the upgrade process for existing systems, facilitating quick and hassle-free installation.
• Wide-Ranging Applications: Perfectly suited for sectors like manufacturing, logistics, and smart buildings, addressing diverse IoT connectivity needs.
• Spectrum Efficiency with LBT: Includes the SX126X option for Listen Before Talk, optimizing radio spectrum usage and network efficiency.

Specifications

• Designed based on PCI Express M.2 Type 3042/2280 form factor and Key B-M Dual Key IDs
• SX1303 baseband processor emulates 8 x 8 channels LoRa packet detectors, 8x SF5-SF12 LoRa
• demodulators, 8x SF5-SF10 LoRa demodulators, one 125/250/500 kHz high-speed LoRa demodulator, and one
• (G)FSK demodulator
• 3.3V PCI Express M.2, compatible with Type 3042/2280 Socket 2 Key B-M PCIe-based WWAN Module
• Tx power up to 27 dBm, Rx sensitivity down to -139 dBm @ SF12, BW 125 kHz
• Supports global license-free frequency band (EU868, IN865, RU864, US915, AU915, KR920, AS923-1, AS923-2, AS923-3, AS923-4)
• Supports USB interface
• Listen Before Talk
• Fine Timestamp
• Built-in ZOE-M8Q GPS module(optional)
• Two MHF4 IPEX connectors for the LoRa and GNSS(optional)  antennas

Application Areas

The RAK5166/RAK5167 Concentrator Card is versatile and ideal for a wide range of applications, encompassing both traditional and innovative uses of LoRaWAN® technology. Some key application areas include:

• Internet of Things (IoT) and Industrial Internet of Things (IIoT) Applications: Enhance connectivity in smart devices, improving data exchange and automation in industrial settings.
• Machine to Machine (M2M) Communication: Facilitate direct communication between devices, streamlining processes and reducing human intervention.
• Smart City Solutions: Implement in systems for smart lighting, waste management, and city-wide sensor networks for enhanced urban living.
• Agricultural Monitoring: Enable efficient monitoring of farm conditions, optimizing resources for better crop management.
• Home, Building, and Industrial Monitoring and Control: Enhance safety and efficiency in managing environmental conditions and security systems.
• Remote Control: Offer reliable solutions for controlling devices and systems remotely in various environments.
• Wireless Alarm and Security Systems: Integrate into security systems for reliable, long-range communication, ensuring safety and prompt response.
• Tracking Applications: Ideal for logistics and asset tracking, providing long-range communication capabilities.

Product Inclusions

• 1x RAK5166 or RAK5167
• 1x Ipex LoRa Antenna*
• 1x Ipex GPS Antenna* (if GPS option selected)

Documentation

• RAK5166 Datasheet
• RAK5167 Datasheet
