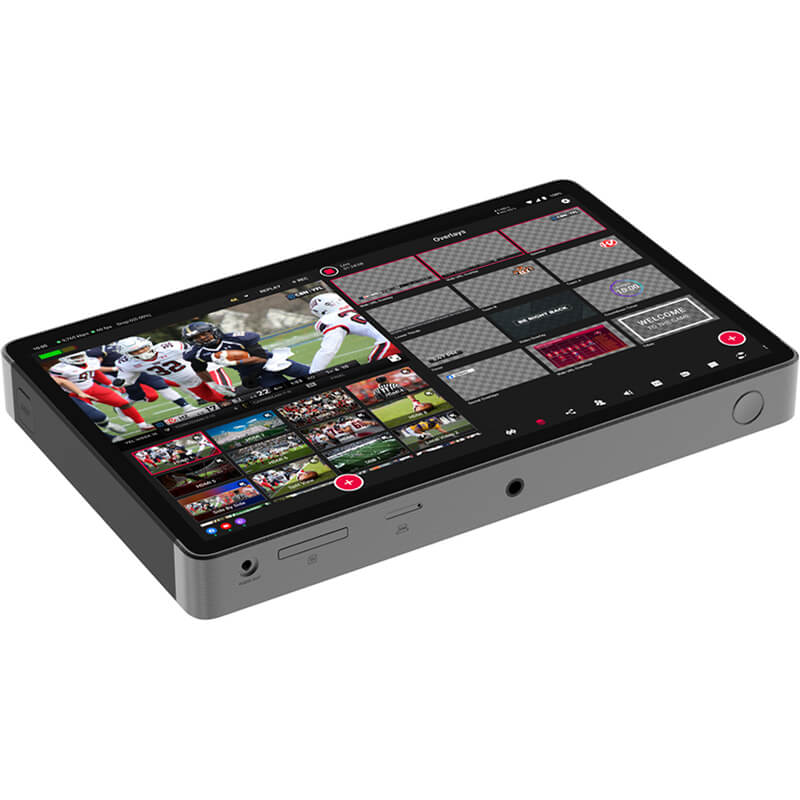

YoloLiv YoloBox Extreme 8 Input Encoder / Switcher / Recorder / Monitor All in One – YOLOBOXEXTREME

FEATURES

• 8 Input Encoder, switcher, recorder, monitor, in One
• ISO Recording – Up to 4*4K30 or 6*1080P60
• Real 4K Streaming
• 8 HDMI Inputs – Up to 4*4K60 with Built-in Scaler
• 2 HDMI Outputs – Assignable Program/Multiview Out in 4K
• Up to 8 NDI Inputs – Connect Wirelessly or via Ethernet
• OLED – 11.2 Inch,2.5K Resolution, 120hz Fresh Rate
• Qualcomm 8Gen2 – Outsized Performance
• MultiCam Instant Replay – 6 Cam at 1080P60 or 4 Cam at 4K30
• External Antenna – Up to 90m Wireless Range & Connectivity
• Up to 10-Hour Battery Life
• Next-Level I/O Versatility
• Next Level Production Flexibility

Perfect for On-Location & One-Man Crew

No Computer Required. Set up in Minutes.

• All-In-One
  Encoder, switcher, recorder, monitor, in One
• Android System
  Users can benefit from regular updates while enjoying an intuitive and familiar interface that enhances usability.
• Minimum Setup
  No computer/desk workstation/professional crew required
• Portability & Mobility
  It is compact, fits into your backpack, and lives On the Go.
• Battery-Powered
  10 Hour Battery Life + Built-In 4G LTE, WiFi, Ethernet
• Touchscreen Control
  Production at your fingertip, great ease to operate

8 HDMI Input – More is Better

Seamlessly Connect Cameras, Laptops, Media Players, and More, Offering Unmatched Flexibility for Any Scenario.
Future-Proof Your Setup Without Worrying About Running Out of Ports.

• HDMI Inputs (1-8): Up to 4*4K60 with Built-in Scaler
• HDMI Outputs (1-2): Assignable Program/Multiview Out in 4K
• Ethernet Connection: Wired Stable internet connection
• USB Type-A 3.0 (1-2): For Webcams; Hard drives; USB dongles.
• Mic In (3.5mm): Mono, connect to the wired microphone
• Line In (3.5mm): Stereo, connect to an external audio mixer
• USB Type-C: A fully functional interface supports input
• USB Type-C: Only for Charging
• Audio Out (3.5mm): Connect to headphones for monitoring
• SD Card Holder: Save files; Load videos & graphics.
• Nano-SIM Card Holder: Insert SIM card for 4G network
• Standard ¼‘’mounting hole: Mount with other cameras & tripods
• Power Button: Turn on & off, Sleep Mode

Dual Assignable HDMI Outputs

Allowing You to Output Different Video Feeds( Preview, Multiview or Program) Simultaneously.

Bigger than ever | Brighter than ever | Smoother than ever

• More Space to Explore
  The all-new 11.2-inch OLED screen brings a larger, more immersive display, redefining how you see and interact with content.
• Shine in Any Light
  With a peak brightness of up to 800-1,000 nits, every detail remains vivid and clear, even under direct sunlight.
• Effortlessly Responsive
  Enjoy ultra-fast touch feedback for a silky-smooth experience, making every interaction seamless and intuitive.

Configure directly & Intuitively from YoloBox

The benchmark for performance is ease of use.

• Live Switch
  Easily switch between multiple video sources or fully customized scenes with a touch.
• Audio Mixing
  Built-in audio mixer with easy setup. Individual level control of multiple audio sources.
• ISO Recording
  Capture all the video inputs as well as the program video and save them separately.
• Graphic Overlays
  Add logos, lower thirds, titles, countdown timer and more to look professional.
• MultiViews
  Customize live stream layout with built-in multiviews and level up production with ease.
• Scoreboard
  YoloBox’s built-in scoreboards allow you to keep the score in real time, display game progress, add game/team logos, and more.
• MultiCam Replay
  Create highlight clips with preset video duration, intros, outro and more with a few clicks.
• Inviting Guests
  Create a real-time conversation with remote guests from a web browser on mobile devices.
• PTZ Control
  With PTZ control, you can preset up to 5 camera positions. This allows you to quickly switch between different angles and views.
• Crop Video
  Video cropping serves various needs such as margin removal, game capture resizing, conferencing zooming, and close-up view creation.
• Chroma Key
  Seamlessly add a different background of a design or a different location for your live productions with the magic of a chroma key in a few taps.
• AutoSwitch
  Seamless Transition between pre-set camera angles with defined order and duration. Frees you from manual camera control to focus on the video.

Advanced Features as Standard

• Free MultiStreaming
• Customized MultiView Out
• 4K Streaming
• App/Web Control Control
• Inviting Guests
• Web URL Overlay
• Video Follow Audio
• Custom Layouts(Scene Building)

Audio Investment Evolved

• Assignable AFV
  Each audio channel automatically switches as the video changes, ensuring perfect synchronization.
• Mix-Minus
  Easily solo monitor a specific audio channel or mute it entirely, giving you full control.
• Audio Delay
  For any sync issues between audio and video, simply adjust the timing to ensure synchronization.

SPECIFICATIONS
