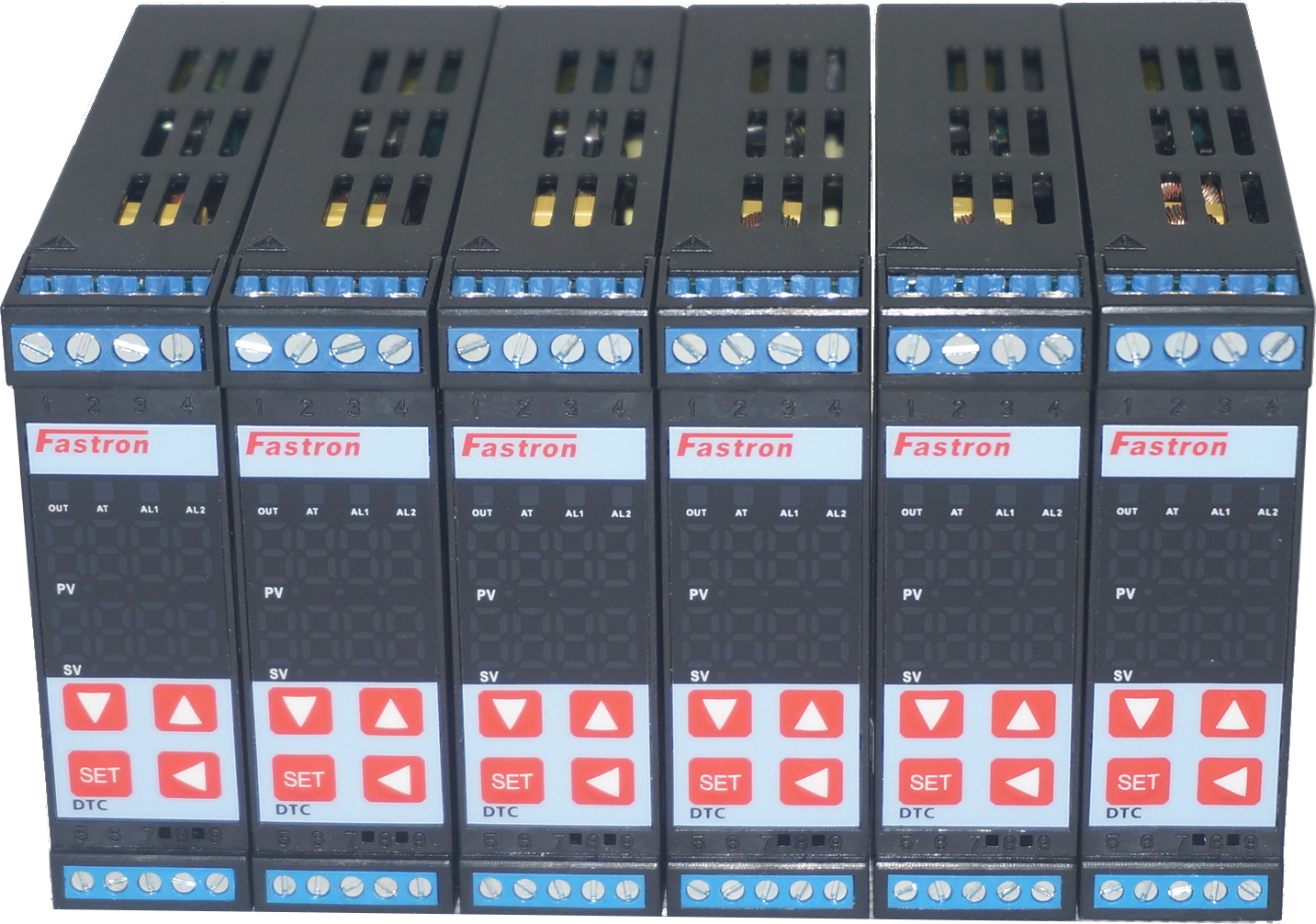

DTC1-A/M1-2O, DIN Rail Mount Transmitter, Multirange Thermocouple Input, 24VAC/DC, 2 x 4-20mA Outputs

Name: DTC1-A/M1-2O, DIN Rail Mount Transmitter, Multirange Thermocouple Input, 24VAC/DC, 2 x 4-20mA Outputs
SKU: CHE20757244
Availability: InStock

$20.99

Fastron DTC1-A/M1-2O, DIN Rail Mount Transmitter, Multirange Thermocouple Input, 24VAC/DC, 2 x 4-20mA OutputsOptional converter function2 Input 1 Output, and 1 Input Two Output Versions availableOptional 60 Segment Multi Pattern Program Control feature4-digit display. Suit most industries including Temperature, Humidity, Pressure (0.5s response)CE ApprovedEach unit needs just 22.5mm width Din…

SKU: CHE20757244 Category: Fastron Electronics

Description
Reviews (0)

Fastron DTC1-A/M1-2O, DIN Rail Mount Transmitter, Multirange Thermocouple Input, 24VAC/DC, 2 x 4-20mA Outputs

Optional converter function
2 Input 1 Output, and 1 Input Two Output Versions available
Optional 60 Segment Multi Pattern Program Control feature
4-digit display. Suit most industries including Temperature, Humidity, Pressure (0.5s response)
CE Approved
Each unit needs just 22.5mm width Din Rail space
EC Compliant (Details)
Various specials available for unique applications.

Specification

Fastron Part Number	DTC1-A/M1-2O
Control Output	2 x 4-20mA
Input	Multirange K/J/R/S/B/E/T/Linear Voltage Current(Optional)/N/W1/W2
Alarm	Relay 3A(Resistive), 1A(Inductive load cos ??=0.4), 240VAC/30VDC
Options	Dual Output
Mounting Style	22.5 x 75mm Din Rail Mount
Supply Voltage	24VAC/DC
Termination Style	Screw
Weight	230g
Factory Pack Qty	1
CE	Yes

Selection Chart

PWM Control Wiring

Datasheet

DTC1 Brochure
DTC1User Manual
DTC1 User Manual Comms versions
Alarm Table
DTC1 (Program Control Version) User Manual
