TENS EMS Unit Electro Acupuncture Stimulator I Multi-Purpose Electric Muscle Stimulator & Health Device Massager

Introducing the TENS EMS Unit Electro Acupuncture Stimulator: Your Comprehensive Health Solution

The TENS EMS Unit Machine Eletro Acupuncture Stimulator is a versatile device engineered for professional-level acupuncture, massage (TENS), and electro-needle therapy. With six channels outputting, it’s designed for multi-purpose use in clinics and hospitals, boasting unique features like two detection jacks and six outputs.

Uses:

• Electro-needle therapy
• Needle-less acupuncture-pulse electric therapy
• Acupoint detection
• Alternative to hand massage

Features:

• Adjustable frequency and intensity for tailored treatment
• Sensitivity probe point locator for precise application
• Five waveform selection buttons with illuminating graphics for easy identification
• Independent indicator lights for frequency and power
• Operates with either adaptor or 6 “C” batteries for convenience
• Built-in timer for controlled sessions
• Error signal tone for incorrect use protection
• Six outputs and two detection outputs for enhanced functionality
• Includes adhesive electrode pads, lead wires, acupoint detecting pen, and output wires for comprehensive treatment
• Package includes main unit, acupoint detecting pen, electrode wires, electrode stickers, fixed tape, English instruction manual, acupoint figure, warranty card, and AC adaptor (110V-220V).

Parameters

VOLTAGE：A/C 110V–240V, D/C 9V

INPUT POWER：≤ 4VA

MAX POWER CONSUMPTION：<5 W

BATTERY REQUIREMENT：6 “C” Size Batteries

DIMENSIONS：222mm x 172mm x 75mm

OUTPUT CHANNELS：6

ACUPOINT DETECTION OUTPUTS：2

ERROR TONE：Tone (song) sounds on error

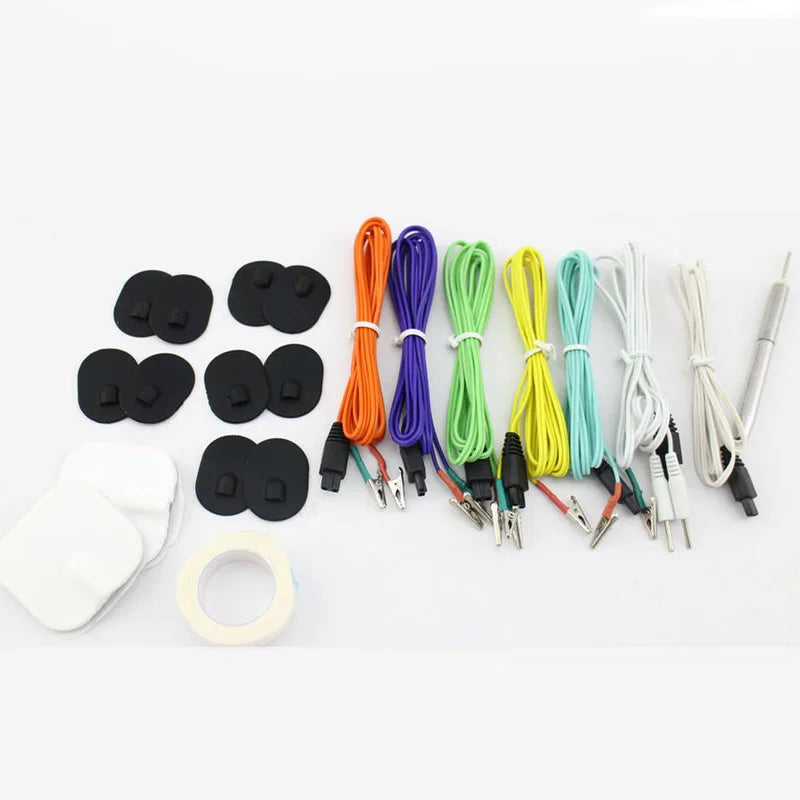

INCLUDED ACCESSORIES：4 electropads with 2 lead wires, 1 detection pen, 6 alligator clip output wires

PLUG TYPE：Rectangular female

Experience the ultimate in health device versatility with the TENS EMS Unit Machine. Unlock optimal wellness and targeted relief with this all-in-one solution.

THE 5 PULSEWAVE FORMS FOR

This acupuncture stimulator features five kinds of wave forms, all very safe, with low frequencies equal to that of the human body. The following five wave forms may be used at the same time or separately, and the output of each one may be reg­ulated independently. For increased effect, two or more outputs can be used simultaneously.

Continuous Wave

Pulse duration r = (0.5 +/- 0.15) ms; Repeated pulse frequency: f1=( 1+/- 0.5 ) Hz to ( 100 +/- 10) Hz. and FREQ1 can be regulated continuously, Max Output pulse amplitude: 40V +/- 10V (Load 500 O.)

Dense-Disperse Wave

Dense & disperse waves display altern¬atively. Disperse frequency: f1 (same with base wave); Dense frequency: 100 Hz. Pulse duration: 0.5ms. FREQ2 regu-lates the frequency f2 of (10 +/- 3) to (50 =/- 10) cycles per min. Max Output pulse amplitude: 40V +/- 10V (Load 500 O.)

Intermittent Wave

Pulse shows at regular interval at the same frequency.

Ripple Wave

Amplitude increase

Ripple Wave

Amplitude increases to maximum then drops to zero suddenly, and repeats. Frequency: (10 +/- 3) to (50 +/- 10) cycles /min. The Max output plus ampli¬tude range is over 5V to 30V (load 500 O.).

Respiration Wave

Amplitude increases first, then drops quickly to zero, and repeats. At 1kO load Vp3 = 24V, other pulse data are same as above.
