Enders Process Equipment Corp. Two Stage Wastewater Evaporator

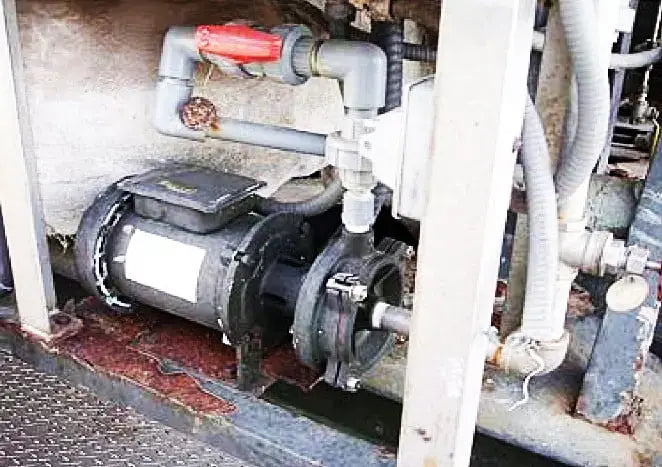

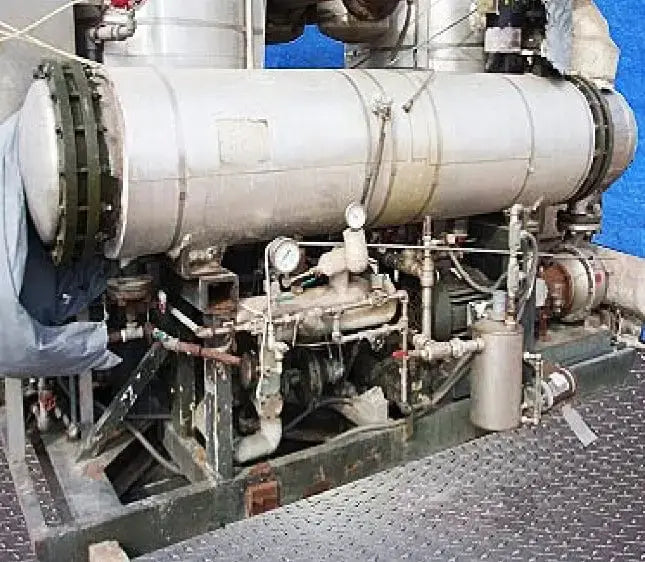

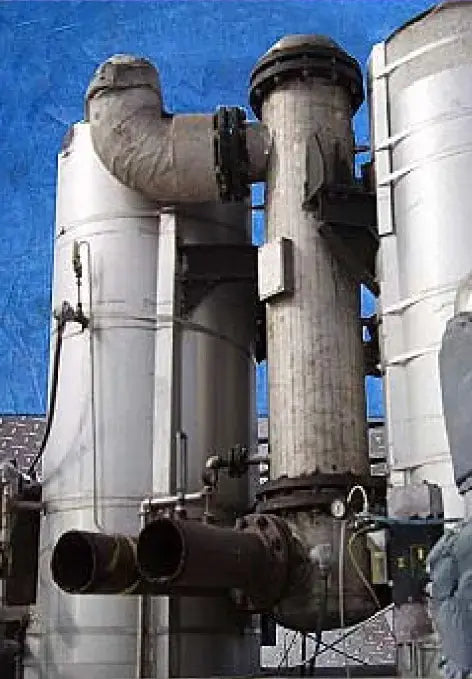

Enders Process Equipment Corp. Two Stage Forced Circulation Tubular Evaporator. Rated at approximately 3,108 pounds per hour water evaporation combined, or 1554 lbs. of water evaporation for each stage, 15psi/14 psi for steam. Supplied to the U.S. Navy for concentrating plating waste. Materials of construction: T-316 stainless steel. Each heating element has (220) 3/4 in. O.D. x 18 Ga. T-316L stainless steel welded tubes 8 ft. Long. (346 sq. ft. based on outside of tubes). Each condenser has (146) 3/4 in. O.D. x 18 Ga. T-316L SS welded tubes 5 ft. L. (142 sq. ft. based on outside of tubes). Inlets: (1) 1 in. dia. steam supply line, (1) 6 in. dia. tube (condenser). Outlets: (1) 6 in. dia. tube (condenser). (4) 1991 Perry Products Corp. shell and tube heat exchangers. Model(s): 14-143/ETSMX and 18-346 FTSMX. Shell side MAWP: 75 psi @ 320 °F (FV), shell MDMT: 20 °F @ 75 psi (FV). Tube side MAWP: 75 psi @ 320 °F (FV), tube MDMT: 20 °F @ 75 psi (FV). (2) R.S. Corcoran Co. centrifugal pumps, Model: 5000F, Baldor Electric industrial motor, 15 hp, 230/460 V, 39.2/19.5 amps, 60 Hz, 3 phase. Overall dimensions 11 ft. L x 6 ft. 6 in. W x 12 ft. 2 in. H.
