Evapco ATC-1284B Evaporative Condenser (642 Nominal Tons,1-15 HP Motor)

Year of Manufacture: 2007

Number Units in Package: 1

Nominal Tons (per unit): 642 TR*

Ammonia Tons (per unit): 487.6 TR*

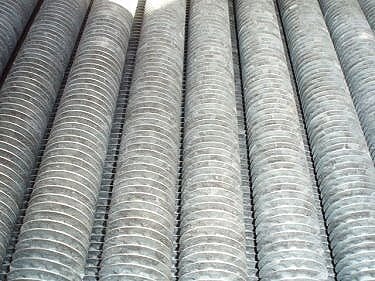

Coil Volume (per unit): 101 ft3

CFM (per unit): 114900 CFM

R-717 (ammonia) or R22 (freon). Last run with Ammonia.

Design pressure:  PSIG

Pump Requirements (per unit): 7.5 HP, 460V, 60 Hz, 3-phase. 1,200 GPM

Pump Included? Yes

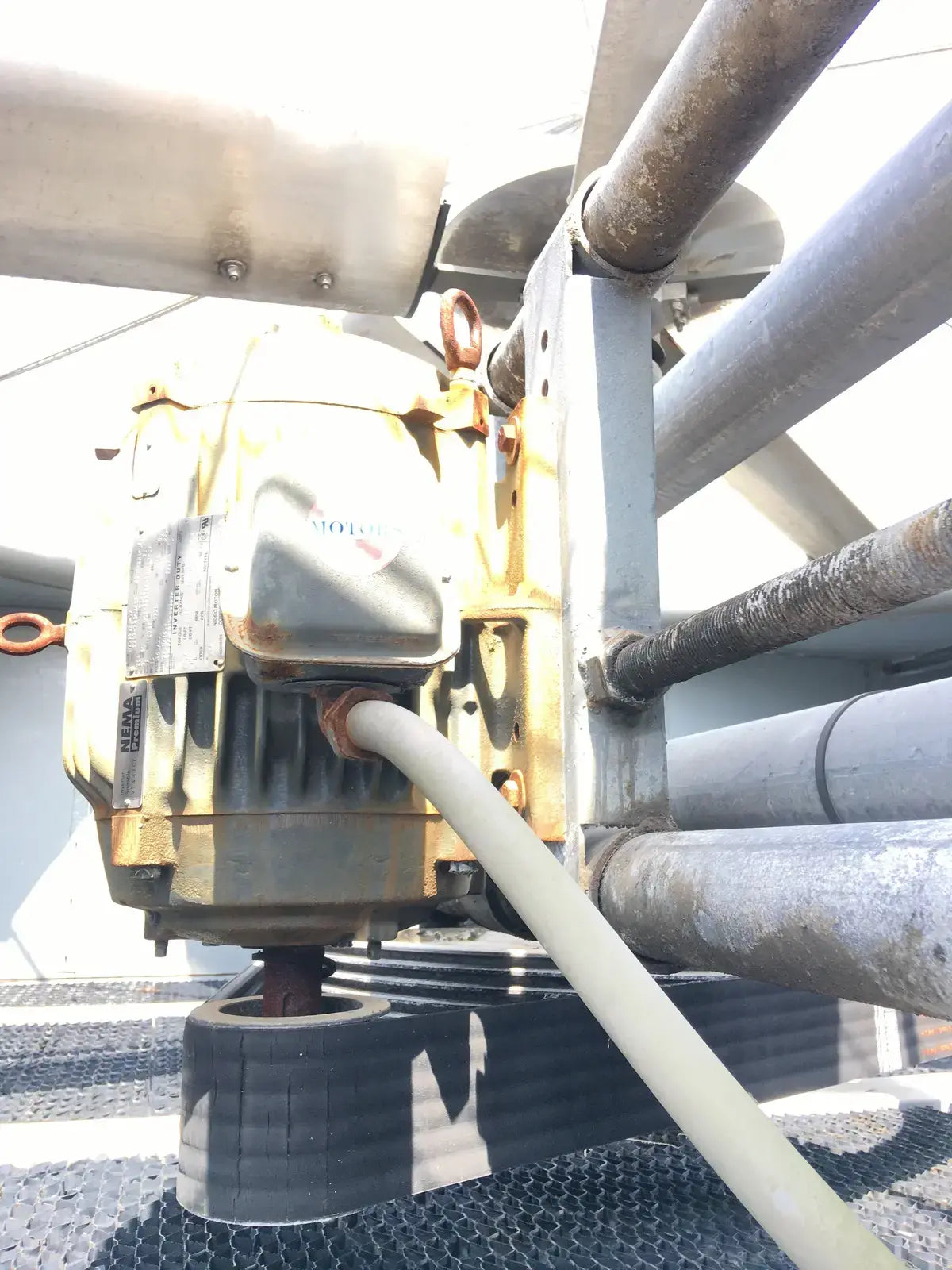

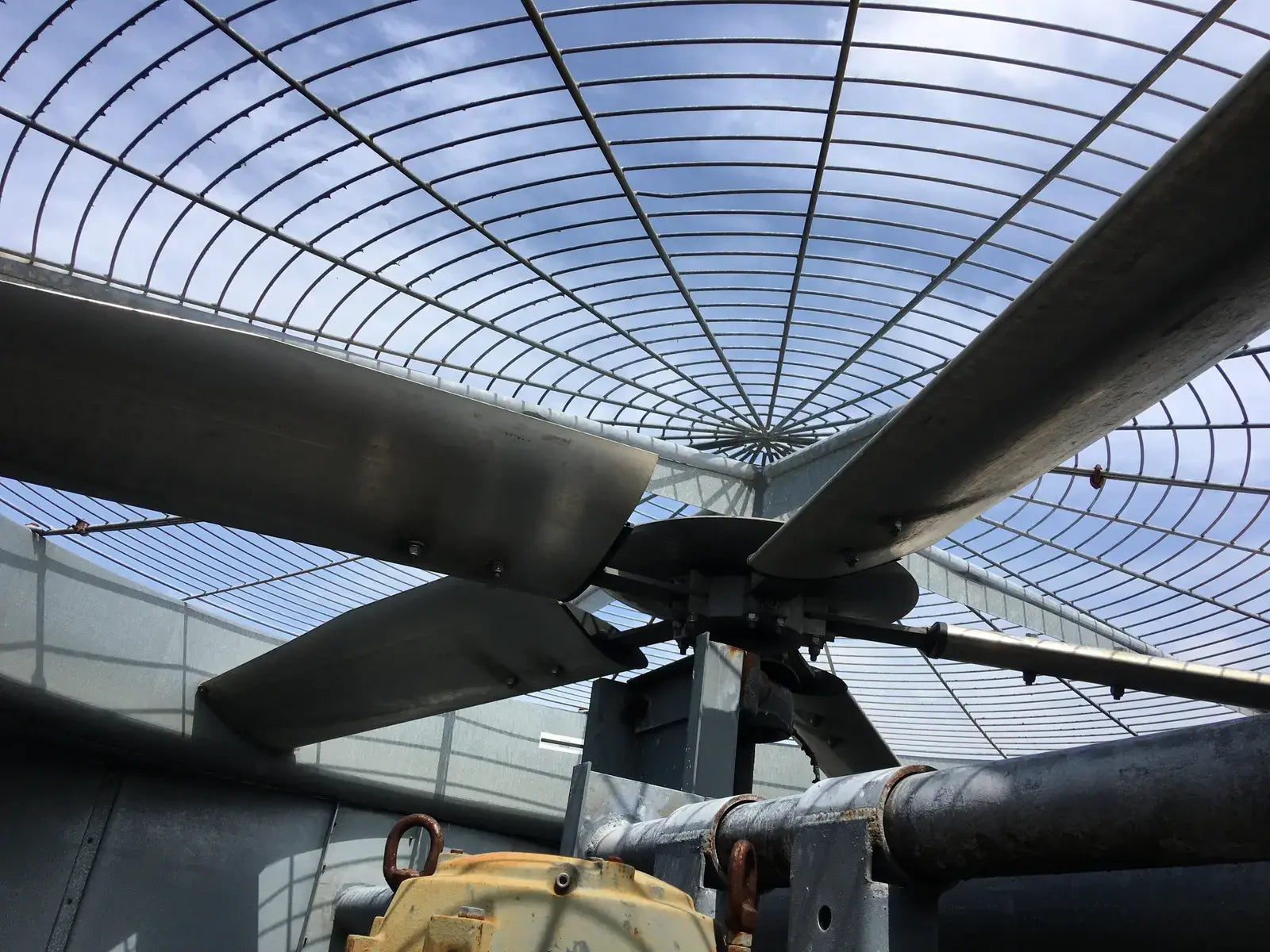

Fan Details (per unit): 15 HP, 460V, 60 Hz, 3-phase

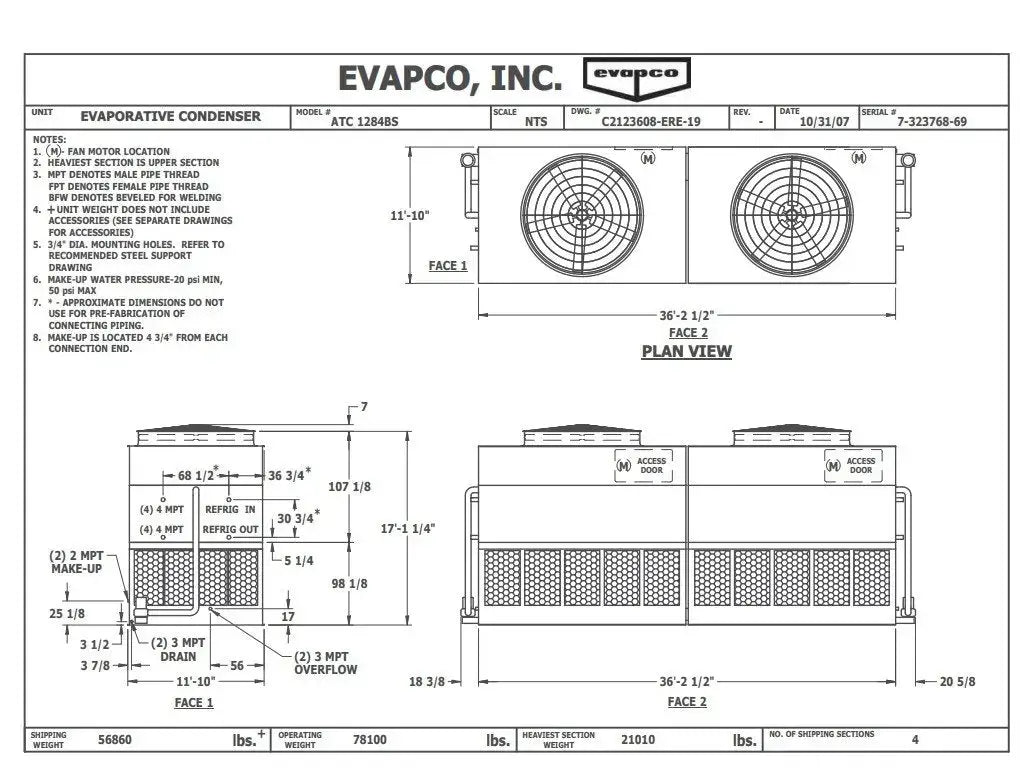

Top Dimensions (per unit): 20’2 L x 12’1 W x 9’8 H

Top Weight (per unit): 22,900 LBS

Bottom Dimensions (per unit): 20’2L x 12’1W x 8’3H

Bottom Weight (per unit): 3,950 LBS

*Tons at standard conditions: 96.3°F condensing, 20°F suction and 78°F Wet Bulb
