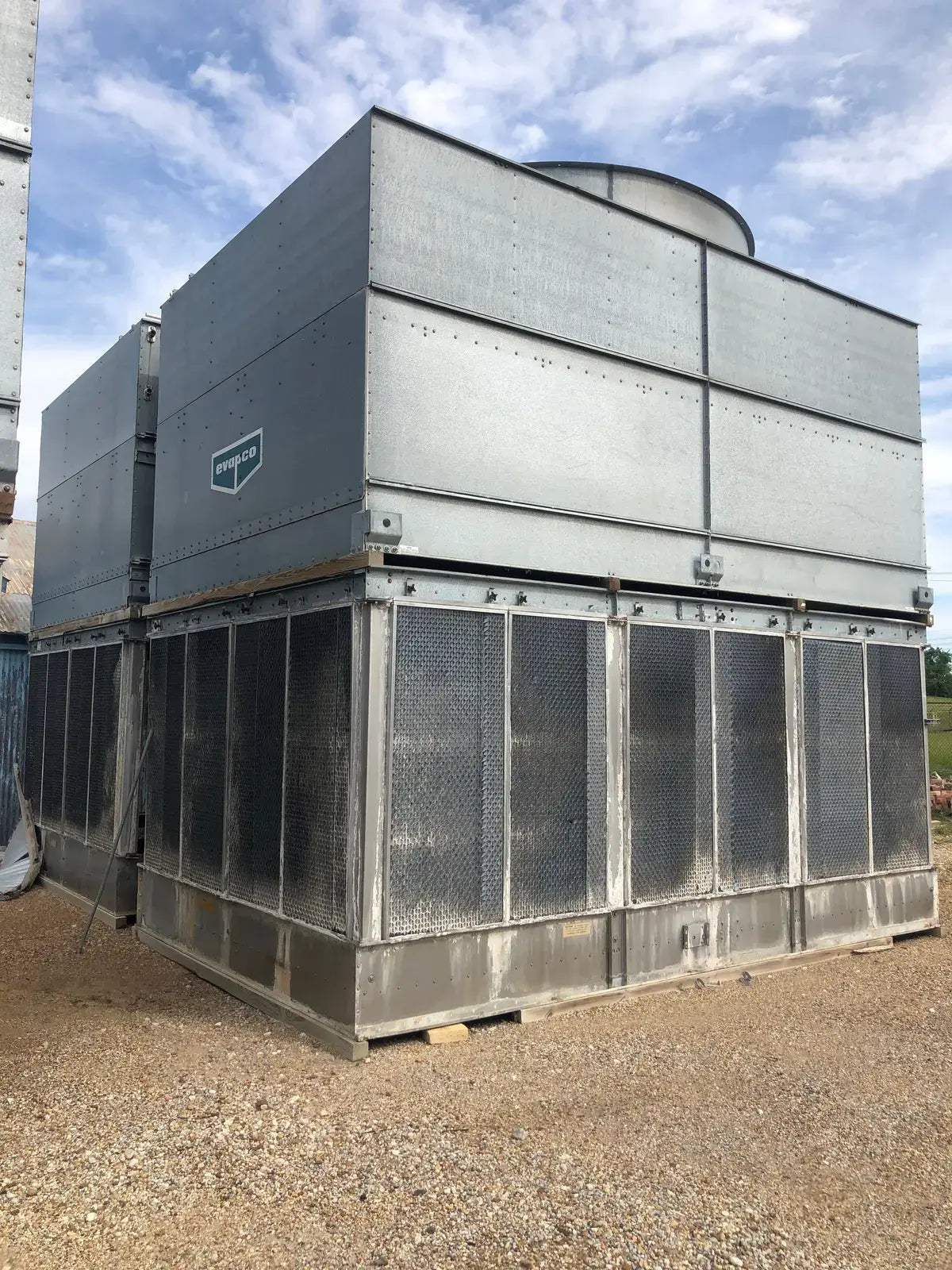

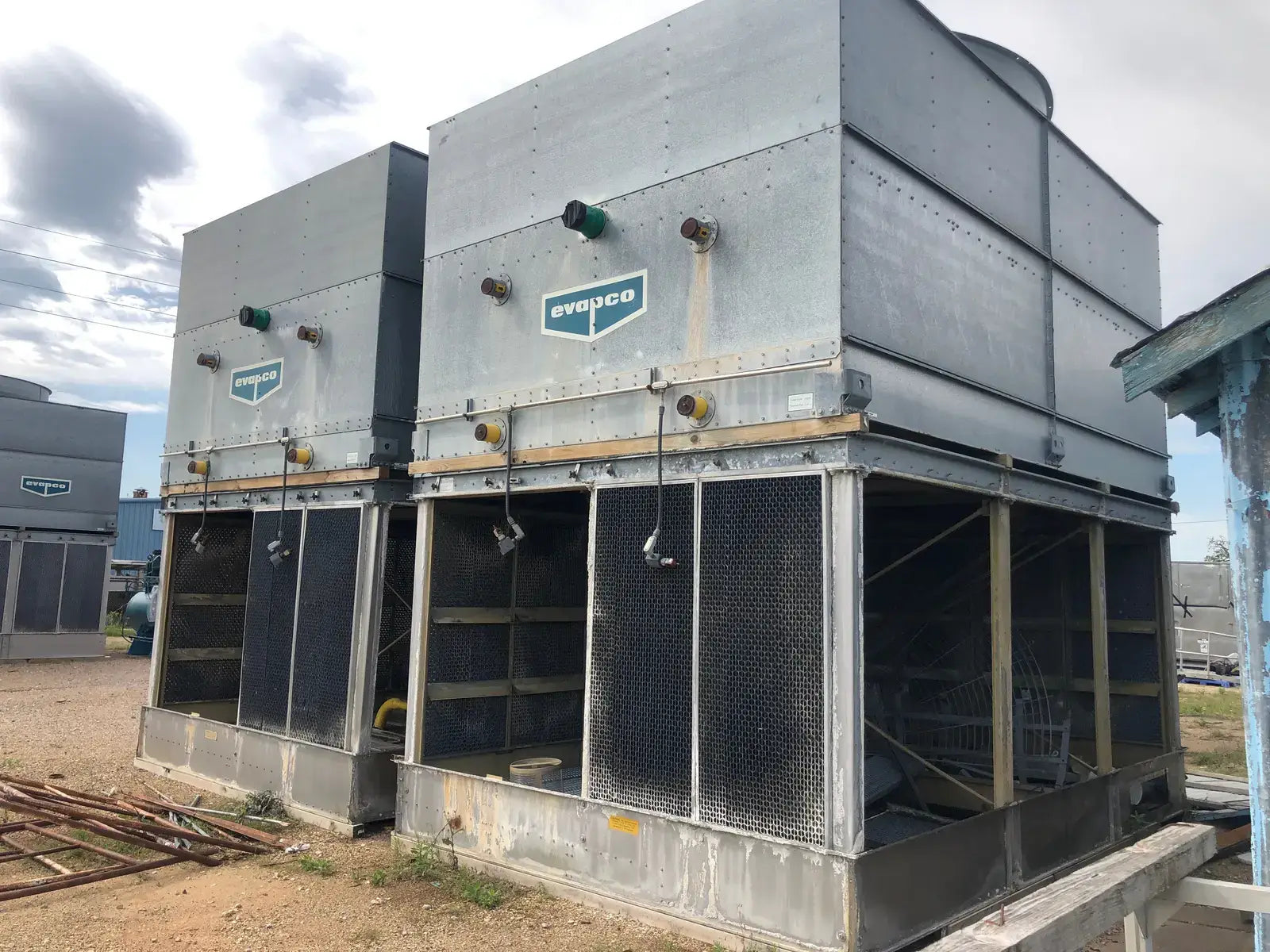

Evapco ATC-1495B Evaporative Condenser Tower (1495 Nominal Tons, 2-25 HP Motors, 2 Tower Units)

Year of Manufacture: 2001
Number Units in Package: 2
Nominal Tons (total): 1495 TR*
Ammonia Tons (total): 1061 TR*
Coil Volume (total): 202 ft3
CFM (total): 229800 CFM

Nominal Tons (per unit): 747.5 TR*
Ammonia Tons (per unit): 530.5 TR*
Coil Volume (per unit): 101 ft3
CFM (per unit): 114900 CFM

R-717 (ammonia) or R22 (freon). Last run with Ammonia.
Design pressure:  PSIG
Pump Requirements (per unit): 7.5 HP 2,100 GPM
Pump Included? No, can purchase separately
Fan Details (per unit): 25HP

Top Dimensions (per unit): 20’2 L x 12’1 W x 9’8 H
Top Weight (per unit): 22,900 LBS
Bottom Dimensions (per unit): 20’2 L x 12’1 W x 8’3 H
Bottom Weight (per unit): 3,950 LBS

*Tons at standard conditions: 96.3°F condensing, 20°F suction and 78°F Wet Bulb

Can sell one tower unit from a group upon request for a fee. Please request as needed.
