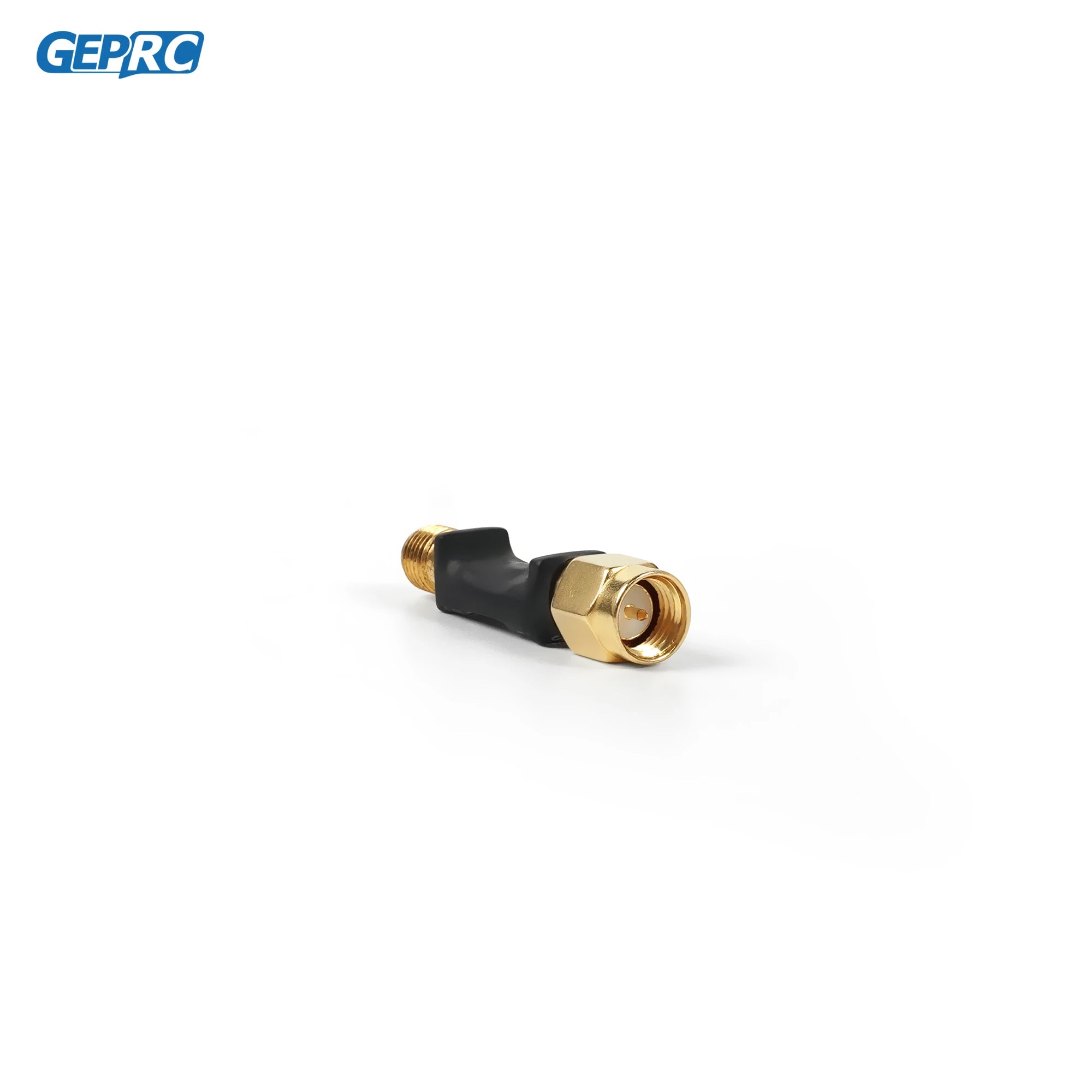

GEPRC 1.2G VTX Filter SMA Anti-interference Signal Quality Improved SMA Port Antenna End Filter
$6.99
SPECIFICATIONSBrand Name: GEPRCIs Electric: No batteryOrigin: Mainland ChinaMaterial: Composite MaterialRecommend Age: 14+yRC Parts & Accs: TransmittersFor Vehicle Type: HelicoptersUse: Vehicles & Remote Control ToysCertification: CECertification: FCCCertification: RoHSCertification: weeeUpgrade Parts/Accessories: AdapterRemote Control Peripherals/Devices: AccessoriesTool Supplies: Assembly CategoryModel Number: 1.2G VTX filterFour-wheel Drive Attributes: AssemblageWheelbase: ScrewsIntroductionDue to the wide working frequency and…
SPECIFICATIONS
Brand Name: GEPRC
Is Electric: No battery
Origin: Mainland China
Material: Composite Material
Recommend Age: 14+y
RC Parts & Accs: Transmitters
For Vehicle Type: Helicopters
Use: Vehicles & Remote Control Toys
Certification: CE
Certification: FCC
Certification: RoHS
Certification: weee
Upgrade Parts/Accessories: Adapter
Remote Control Peripherals/Devices: Accessories
Tool Supplies: Assembly Category
Model Number: 1.2G VTX filter
Four-wheel Drive Attributes: Assemblage
Wheelbase: Screws
Introduction
Due to the wide working frequency and poor filtering effect on most common 1.2-1.3G image transmission receivers, the video signal and the remote control signal cannot be effectively separated when collocation with the 915/868 remote control system, resulting in the image transmission picture is often disturbed.
By installing this filter between the 1.2G VRX and the antenna, the 915/868MHz signal can be effectively filtered out, and the signal quality of the 1.2G VRX can be improved, making the video picture cleaner.
Specifications
Product Name: 1.2G VTX filter
Material: Ceramic
Input and output impedance: 50Ω
Volume:37*8*7mm
Weight: 5.2g
Interface type: SMA(customizable)
The GEPRC 1.2G VTX Filter improves signal quality by separating the 915/868 MHz signals from the antenna and eliminating interference when co-located with remote control systems. By installing this filter, video signals are effectively filtered out.
