Elecrow CrowPanel 5-inch HMI ESP32 Display 800×480 RGB TFT LCD Touchscreen w/o Case

• Elecrow CrowPanel 5.0″-HMI ESP32 Display 800×480 RGB TFT LCD Touchscreen w/o Case
• Features a 5-inch 800×480 capacitive touchscreen
• Empowers IoT projects with ESP32-S3 module
• Supports multiple development environments
• Integrates WiFi and Bluetooth for connectivity

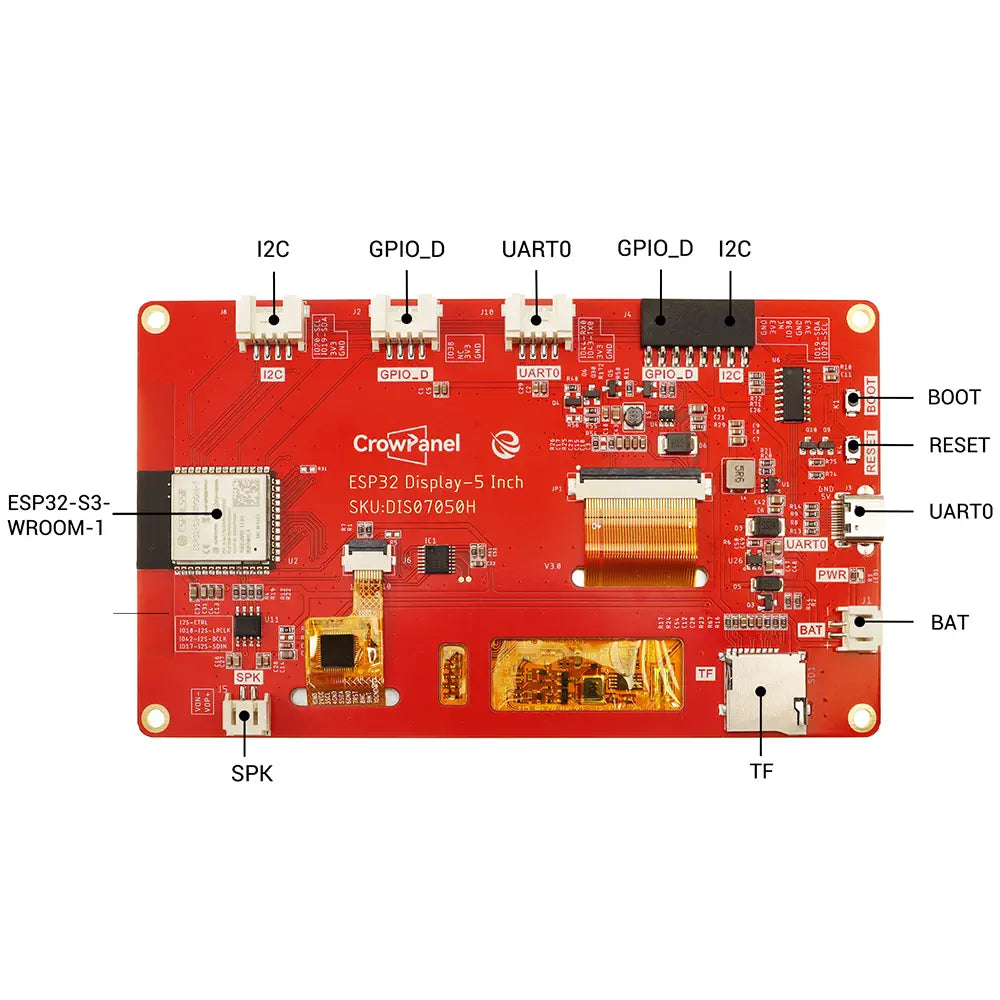

• Expands easily with rich peripheral interfaces

The Elecrow CrowPanel 5.0″-HMI ESP32 Display 800×480 RGB TFT LCD Touchscreen w/o Case is a sophisticated human-machine interface module featuring a capacitive touch screen with a resolution of 800×480 pixels. It is powered by the ESP32-S3-WROOM-1-N4R8 module, which includes a dual-core 32-bit LX6 microprocessor and integrated WiFi and Bluetooth capabilities, operating at a main frequency of up to 240MHz. This display is designed for versatile applications, particularly in the Internet of Things (IoT) domain, and is suitable for use in automotive, medical, industrial, and various other electronic fields. The module supports multiple development environments, including Arduino IDE, Espressif IDF, and Micro Python, and is compatible with the LVGL graphics library, allowing for rapid development and customization of user interfaces. The display’s capacitive touch technology, along with its numerous peripheral interfaces such as USB, speaker, and battery interfaces, offers extensive expansion possibilities, making it a comprehensive solution for diverse application needs.

• 1x CrowPanel ESP32 Display-5.0 Inch Display
• 1x USB-A to Type-C Cable
• 1x Crotail/Grove to 4pin DuPont cable

• Active Area: 108 x 64.8 mm

PDF Files

• Elecrow CrowPanel 5-inch HMI ESP32 Display 800×480 RGB TFT LCD Touchscreen w/o Case – Datasheet
• Elecrow CrowPanel 5-inch HMI ESP32 Display 800×480 RGB TFT LCD Touchscreen w/o Case – CE Certificate

ZIP File

• Elecrow CrowPanel 5-inch HMI ESP32 Display 800×480 RGB TFT LCD Touchscreen w/o Case – Schematic

• Integrated ESP32-S3-WROOM-1-N4R8 module
• Built-in 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5.0
• Supports development environments: Arduino IDE, Espressif IDF, PlatformIO, MicroPython
• Compatible with the LVGL graphics library
• Includes built-in LVGL demo interface and Arduino example; plug and play
• 800×480 TFT-LCD capacitive screen with driver IC ILI6122 + ILI5960
• Rich peripheral interfaces and expansion functions for diverse applications
