Rpanion Pi Connect Lite V2

• Rpanion Pi Connect Lite V2
• Integrates seamlessly with Raspberry Pi models 2 to 5
• Consolidates essential features for robotics applications
• Includes a 5.1V/3.5A high-efficiency power supply
• Ensures reliable performance with ESD and reverse protection
• Supports wide input voltage range suitable for 6S Lithium batteries

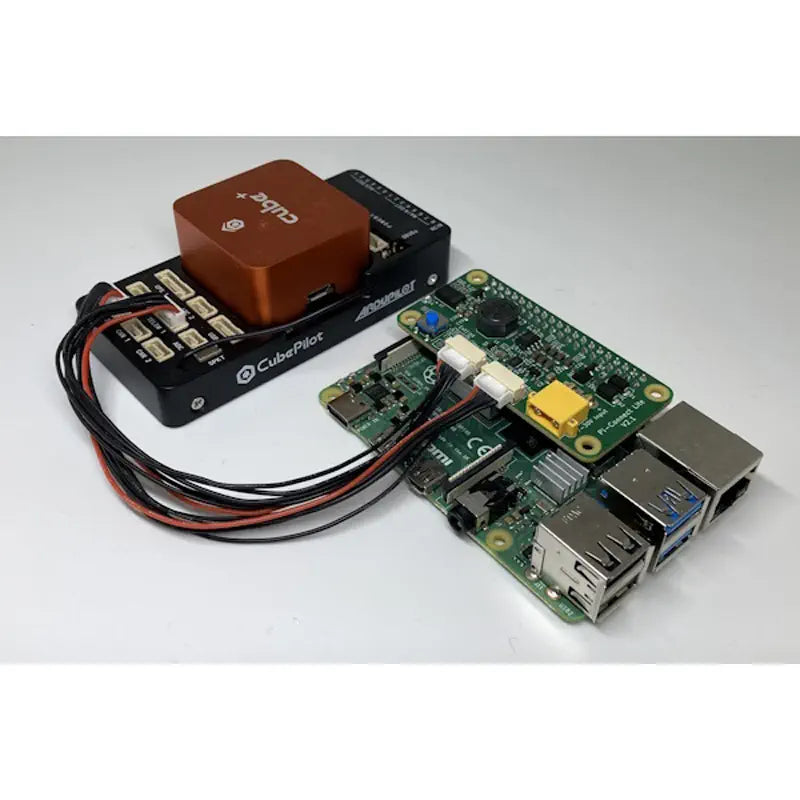

The Rpanion Pi Connect Lite V2 is a power supply HAT designed for seamless integration with Raspberry Pi and compatibility with ArduPilot and PX4 flight controllers, specifically tailored for robotics applications. This compact board consolidates essential features, including a 5.1V/3.5A low noise power supply, telemetry ports for flight controller connectivity, and a power button for safe shutdown of the Raspberry Pi, which requires software configuration.

It adheres to the Raspberry Pi HAT specification and is compatible with models 2, 3, 4, 5 Zero, and Zero2. The board is equipped with a high-efficiency power supply, reverse input protection, and ESD protection, ensuring reliable performance. It features an XT30 power connector and supports a wide input voltage range of 7 to 30V, suitable for a 6S Lithium battery.

The design includes overcurrent and short circuit protection, low EMI and EMC, and an additional UART for Pi 4 and 5. The telemetry ports use a JST-GH 6-pin DroneCode standard connector, facilitating easy connection to flight controllers. The major updates from the previous version include a change to the XT30 power connector, a power button for improved functionality, reduced EMI/EMC, and an additional JST-GH telemetry port.

• 1x Rpanion Pi Connect Lite V2
• 1x JST-GH Telemetry Cable

• 6.5 x 3.5 x 4 cm (L x W x H)

• 5.1V/3.5A low-noise power supply with high-quality components
• Telemetry ports for connection to ArduPilot or PX4-based flight controllers
• Power button for safely shutting down the Raspberry Pi
• Compliant with the Raspberry Pi HAT specification (uHAT size)
• Compatible with Raspberry Pi 2, 3, 4, 5, Zero, and Zero2
• XT30 power connector
• Wide input voltage range (7–30V), compatible with a 6S Lithium battery
• High-efficiency power supply (minimum 78%, typically 86%+)
• Reverse input protection
• ESD protection
• Supplies a full 5.1V at 3.5A for the Pi and connected USB devices
• Overcurrent and short circuit protection
• Low EMI and EMC
• Additional UART for Pi 4 and 5
• Two telemetry (serial) ports using a JST-GH 6-pin DroneCode standard connector
• Weight: 100 g
