Dahua 3X66 Security System: 4CH 8MP Lite NVR, 1 x 8MP Dome 1 x 6MP Turret, Starlight, SMD 4.0, AI SSA

Description

This kit has been superseded by the Dahua Full AI 2023 Security Systems built around Dahua’s latest WizSense AI 3X66 Cameras and AI NVRs.

This video highlights the new features introduced by the 3X66 series. This product’s specifications may vary in terms of resolution, model, etc. Please refer to the datasheets for accurate specs or contact us for questions.

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chips and deep learning algorithms. It focuses on humans and vehicles with high accuracy, enabling users to fast act on defined targets. Based on Dahua’s advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

SMD 4.0 With upgraded AI capabilities, the SMD function filters out irrelevant objects in the scene. Equipped with a new deep learning algorithm, SMD 4.0 is optimized to filter out small and large animals in the scene to avoid triggering false alarms.
Also, SMD 4.0 can detect the colour information of clothing and vehicle for data support of quick search after an event.

WizSense Series – Engineered to provide smart, simple and affordable security. WizSense series cameras support an independent AI chip with a deep learning algorithm to provide a more intelligent and simple security solution focused on human and vehicle detection. This helps filter out false alerts triggered by bugs, changes in light, leaves, trees and animals.

Supports Smart Motion Detection Plus (SMD+) dramatically reduces false alarms in motion detection by only detecting humans and vehicles, greatly reducing false alerts triggered by bugs, changes in light, leaves, trees and animals. Target is tracked and triggers real-time alerts to a smart device through the iOS/Android app.

Through advanced video algorithms, Dahua’s Intelligent Video Surveillance (IVS) technology supports smart functions such as Tripwire and Intrusion Detection.

Starlight technology generates clear images in near-complete darkness. A high-performing sensor and special algorithms work together to capture images in low-light and no-light environments.

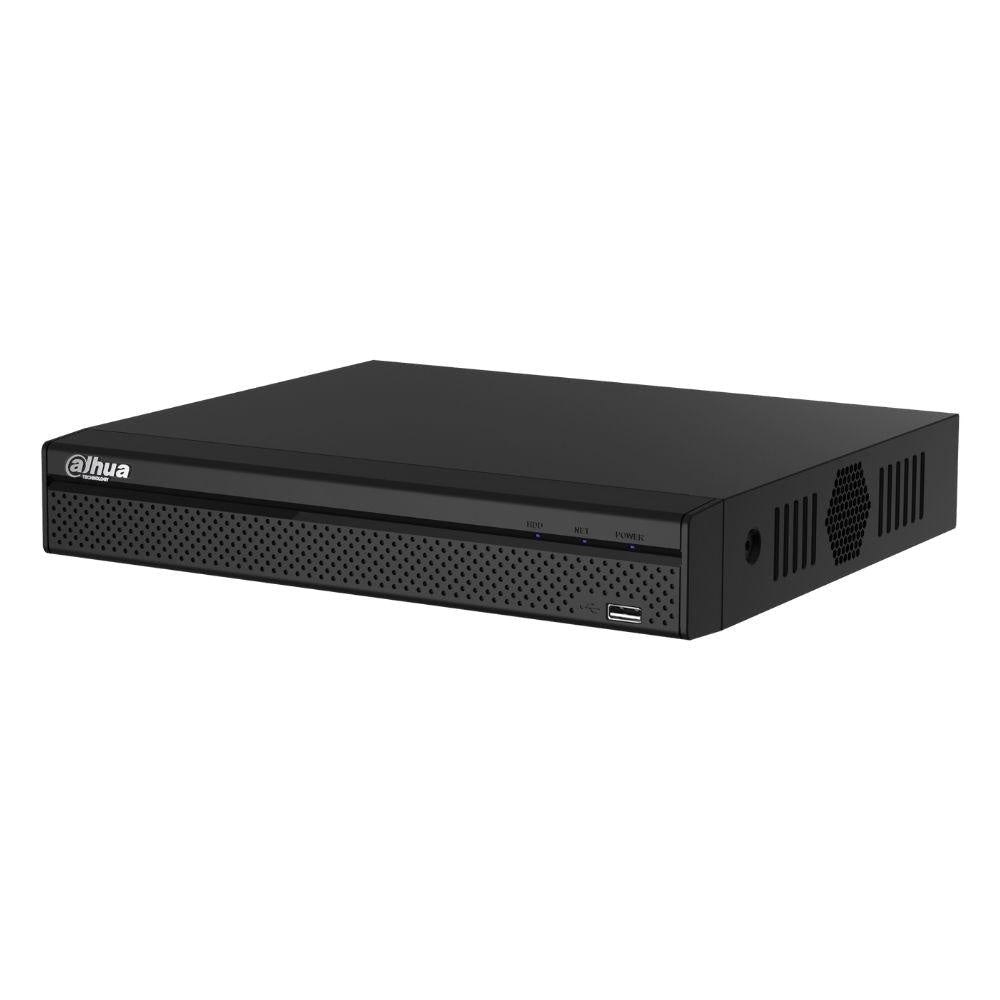

The Dahua DHI-NVR4104HS-P-4KS2/L is a 4-channel network video recorder with a new and improved user interface. The NVR serves as a highly cost-effective product, providing functions such as local live view, multi-screen display, real-time storage on local HDD, fast operation by mouse, remote management and control.

The NVR supports Smart Motion Detection with a deep learning algorithm allowing human and vehicle identification with compatible cameras. It also supports advanced intelligent detection technology such as detecting abandoned or missing objects, Tripwire violations and intrusion violations. The NVR is also capable of recording business analysis data such as Facial Detection, People Counting, and Heat maps from IP cameras with built-in Intelligent Business Analytics.

For applications where high image detail is required, the DHI-NVR4104HS-P-4KS2/L delivers the capability of 4K resolution processing. It supports smart encoding (Smart H.265+/ Smart H.264+) which is an optimised implementation of (H.265/H.264) codec that uses a scene-adaptive encoding strategy, providing more efficiency in the encoding process and higher video quality, reducing the cost of storage and transmission significantly.

The NVR supports P2P remote surveillance for Live camera viewing and playback on mobile devices with the free app for ios and android called iDMSS (for iOS) and gDMSS (for Android).

The NVR is ideal for a wide range of applications including home, business or commercial solutions.

Camera Features

• 8-MP 1/2.8″ CMOS image sensor, excellent low luminance performance and high definition of images.
• Outputs max. 8 MP (3840 × 2160) @25/30 fps.
• H.265 codec allows a high compression ratio and ultra-low bit rate.
• Built-in IR LED, max. IR distance: 30 m.
• ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
• Rotation mode, WDR, 3D NR, HLC, BLC, and digital watermarking, are applicable to various monitoring scenes.
• Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
• Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
• Alarm: 1 in, 1 out (Only – AS supports); audio: 1 in, 1 out (Only – AS supports); max. 256 G Micro SD card. built-in Mic.
• 12 VDC/PoE power supply facilitates installation.
• IP67, IK10 protection.
• SMD 4.0, AI SSA.

Recorder Features

• New 4.0 user interface, Security baseline 2.1
• H.264, H.265, Smart H.264+, and Smart H.265+. H.265 auto switch
• Max. decoding capability: 8 × 1080p@30 fps. Supports adaptive decoding
• Supports mainstream cameras of ONVIF and RTSP protocols
• P2P remote surveillance, video play on a mobile device
• VGA/HDMI simultaneous video output, the maximum resolution of HDMI is 4K
• AI by Camera: Face detection, perimeter protection, IVS, people counting, heat map, and SMD
• Supports remote configuration and management of IPC, such as setting parameters, getting information, and upgrading IPC of the same model in batches
• 1 SATA III port, up to 10 TB for a single HDD.

System Includes

• 1 x Dahua Security Camera: 8MP Dome, 2.8mm, WizSense, Starlight, SMD 4.0 – DH-IPC-HDBW3866EP-AS-AUS

• 1 x Dahua Security Camera: 8MP Turret, 2.8mm, WizSense, Starlight, SMD 4.0 – DH-IPC-HDW3866EMP-S-AUS

• 1 x Dahua 4 Channel Network Video Recorder: 8MP(4K), Lite – DHI-NVR4104HS-P-4KS2/L

If the system is purchased with a hard drive, it will be pre-installed in the NVR.
Ethernet cables, mounts, junction boxes. and other accessories are available for purchase.

Downloads

• Dahua 3X66 Series Camera – DH-IPC-HDBW3866EP-AS-AUS-Datasheet
• Dahua 3X66 Series Camera – DH-IPC-HDW3866EMP-S-AUS-Datasheet
• Dahua 4CH NVR: 8MP Lite – DHI-NVR4104HS-P-4KS2/L-Datasheet
• Dahua 4CH NVR: 8MP Lite – DHI-NVR4104HS-P-4KS2/L Users Manual
• Dahua Accessory Guide 2022

Tech Specs

Dahua Security Camera: 8MP Dome, 2.8mm, WizSense, Starlight, SMD 4.0 – DH-IPC-HDBW3866EP-AS-AUS

Camera
Image Sensor	1/2.8″ CMOS
Max. Resolution	3840 (H) x 2160 (V)
ROM	128 MB
RAM	1 GB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s-1/100,000 s
Min. Illumination	0.007 [email protected] (Color, 30I RE) 0.0007 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on)
S/N Ratio	>56 dB
Illumination Distance	30 m (98.42 ft)
Illuminator On/Off Control	Auto/Manual
Illuminator Number	3 (IR LED)
Pan/Tilt/Rotation Range	Pan: 0°-355°; Tilt: 0°-80°; Rotation: 0°-355°
Lens
Lens Type	Fixed-focal
Lens Mount	M12
Focal Length	2.8 mm; 3.6 mm
Max. Aperture	F1.4
Field of View	2.8 mm: Horizontal:107°; vertical: 56°; diagonal: 127° 3.6 mm: Horizontal:84°; vertical: 47°; diagonal: 97°
Iris Control	Fixed
Close Focus Distance	2.8 mm: 1.5 m (4.9 ft) 3.6 mm: 2 m (6.6 ft)
DORI Distance	Lens	Detect	Observe	Recognize	Identify
2.8 mm	87.7 m (287.73 ft)	35.1 m (115.16 ft)	17.5 m (57.41 ft)	8.8 m (28.87 ft)
3.6 mm	102.1 m (334.97 ft)	40.8 m (133.86 ft)	20.4 m (66.93 ft)	10.2 m (33.46 ft)
Intelligence
IVS (Perimeter Protection)	Tripwire, intrusion (support the classification and accurate detection of vehicle and human)
AI SSA	Yes
Quick Pick	With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events
Smart Search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec	Smart H.265+ Smart H.264+
AI Coding	AI H.265 AI H.264
Video Frame Rate	Main stream: 3840 x 2160 @ (1-25/30) fps Sub stream 1: 704 x 576 @ (1-25 fps)/704 x 480 @ (1-30 fps) Sub stream 2: 1920 x 1080 @ (1-25/30 fps)*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
Stream Capability	3 streams
Resolution	8M (3840 x 2160); 6M (3072 x 2048); 5M (3072 x 1728/2592 x 1944); 4M (2688 x 1520); 3.6M (2560 x 1440); 3M (2048 x 1536); 3M (2304 x 1296); 1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280 x 720); D1 (704 x 576/704 x 480); CIF (352 x 288/352 x 240); VGA (640 x 480)
Bit Rate Control	CBR/VBR
Video Bit Rate	H.264: 3 kbps-8192 kbps H.265: 3 kbps-8192 kbps
Day/Night	Auto (ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	120 dB
Scene Self-adaptation (SSA)	Yes
White Balance	Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control	Auto
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest (RoI)	Yes (4 areas)
Defog	Yes
AFSA	Yes
Image Rotation	0°/90°/180°/270° (support 90°/270° with 2688×1520 resolution and lower)
Mirror	Yes
Privacy Masking	4 areas
Audio
Built-in MIC	Yes
Audio Compression	G.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm Event	– AS:No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; external alarm; SMD; safety exception-S:No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; SMD; safety exception
Network
Network Port	RJ-45 (10/100 Base-T)
SDK and API	Yes
Network Protocol	IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Cyber Security	Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
Interoperability	ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
User/Host	20 (Total bandwidth: 64 M)
Storage	FTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser	IE:IE11 Chrome Firefox
Management Software	Smart PSS; DSS; DMSS
Mobile Client	IOS; Android
Certification
Certifications	CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC:47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Port
Audio Input	1 channel (RCA port) (Only – AS supports)
Audio Output	1 channel (RCA port) (Only – AS supports)
Alarm Input	1 channel in: 5 mA 3-5 VDC (Only – AS supports)
Alarm Output	1 channel out: 300 mA 12 VDC (Only – AS supports)
Power
Power Supply	12 VDC/PoE (802.3af)
Power Consumption	Basic: 4 W (12 VDC); 4.9 W (PoE) Max. (WDR + IR intensity + Intelligence): 8.5 W (12 VDC); 9.7 W (PoE)
Environment
Operating Temperature	-40°C to +60°C (-40°F to 140°F) /Less than 95% RH
Storage Temperature	-40°C to +60°C (-40°F to 140°F)
Protection	IP67; IK10
Structure
Casing	Metal
Product Dimensions	89.1 mm x ?111.7 mm (3.51″ x ?4.40″)
Net Weight	516 g (1.14 lb)
Gross Weight	670 g (1.48 lb)

Dahua 4 Channel Network Video Recorder: 8MP(4K), Lite – DHI-NVR4104HS-P-4KS2/L

System
Main Processor	Industrial-grade embedded processor
OS	Embedded Linux
Operation Interface	Web/operating in local GUI
Perimeter Protection by Camera
Performance	4 channels
AI Search	Search for pictures by channel, time and event type
Face Detection by Camera
Performance	4 channels
Face Attributes	6 attributes: Gender, age, glasses, expression, mouth mask, and beard
AI Search	Search for pictures by channel, time and face attributes
SMD Plus by Camera
Performance	4 channels
AI Search	Search by target classification (human, vehicle)
Video
Access Channel	4
Network Bandwidth	Access: 80 Mbps; Storage: 80 Mbps; Forward: 60 Mbps
Resolution	8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1
Decoding Capability	8 x 1080p@30 fps
Video Output	1 x VGA output, 1 x HDMI output, supports simultaneous video sources output for VGA and HDMI
Multi-screen Display	1 , 4 views
Third-party Camera Access	ONVIF; RTSP
Compression
Video	Smart H.265/H.265/Smart H.264/H.264/MJPEG
Audio	PCM/G711A/G711U/G726/AAC
Network
Network Protocol	HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register
Mobile Phone Access	Android; iOS
Interoperability	ONVIF(profile T/S/G); CGI; SDK
Browser	Chrome; IE9 or later; firefox
Record Playback
Multi-channel Playback	Up to 4 channels for playback
Record Mode	Manual record; alarm recording; SMD recording; smart recording
Storage	Local HDD; network
Backup	USB storage device
Playback Function	1. Play/pause/stop/slow/quick/backward/by frame 2. Full screen, backup (video clip/file), partial zoom in, and audio on/off
Storage
Disk Group	Yes
Alarm
General Alarm	Motion detection, privacy masking, video loss, scene changing, PIR alarm, IPC external alarm
Anomaly Alarm	Camera disconnection, storage error, disk full, IP conflict, MAC conflict, login locked, and cybersecurity exception
Intelligent Alarm	Face detection, perimeter protection (intrusion and tripwire), IVS, people counting, heat map, and SMD alarms
Alarm Linkage	Recording, snapshot, audio, buzzer, log, preset, and email
External Port
Audio Input	1 x RCA input
Audio Output	1 x RCA output
HDD	1 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature
USB	2 (1 x front USB2.0; 1 x back USB2.0)
HDMI	1 (supports up to 4K resolution output)
VGA	1
Network	1 x RJ-45, 10/100 Mbps self-adaptive Ethernet port
POE	4
General Parameter
Power Supply	48 V/53 VDC, 1.25 A/1.13 A
Power Consumption	< 10 W (HDD not included, idling) Total output power of PoE is 36W, the maximum output power of a single port is 25.5W
Net Weight	0.86 kg (1.90 lb)
Gross Weight	1.86 kg (4.10 lb)
Product Dimensions	260 mm x 232.3 mm x 50.3 mm (10.24″ x 9.14″ x 1.98″) (W x L x H)
Package Dimensions	117 mm x 373 mm x 307 mm (4.61″ x 14.69″ x 12.09″) (W x L x H)
Operating Conditions	-10 °C to +55 °C (+10 °F to +131 °F)
Storage Conditions	0 °C to +40 °C (32 °F to 104 °F)
Operating Humidity	10?~93?
Storage Humidity	30%~85%
Operating Altitude	3000 m (9842.52 ft)
Installation	Desktop mounted
Certifications	CE: EN62368-1; EN55032,EN55024, EN55035, EN61000-3-2, EN61000-3-3 EN50130-4 FCC: Part 15 Subpart B
