iiyama ProLite T4362AS-B1

43″ All-in-one PCAP Interactive Display

All-in-one PCAP Interactive Display inspired by technology and designed for creative spaces and sharing

• Description
• Specifications
• Warranty
• Downloads

•
  PROLITE T4362AS-B1
  All-in-one PCAP Interactive Display inspired by technology and designed for creative spaces and sharing

  Enjoy an all-in-one interactive display that combines the best in PCAP Touchscreen technology, offering the versatility and freedom of Android OS, easily customized to your needs by installing applications directly to it. Offering a powerful, yet flexible user experience, fostering creative communication with the benefits of a secure and controllable Touchscreen.

  The refined design of the T4362AS-B1 lends itself to integration into a large variety of environments where polished design and functionality are needed, like Huddle spaces in modern office space, Retail shops, and Kiosks.

  With the EShare app, you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before.

  RETAIL INSTALLATIONS
  The interactive 4K Touchscreens are the key to immersive interactive experiences for spatial retail design. Allow customers to explore your website right there and then engage with a range of creative or experiential applications you want to host. The flexibility of either landscape or portrait modes with 24/7 Operation, built-in Android, and MediaPlayer make the 62 Series displays one of the most adaptable Touchscreens solutions around.

  HUDDLE SPACES
  Turn these small meeting rooms into neat Collaboration spaces by employing embedded applications like Android OS, EShare, and Whiteboard, a selection of intuitive and practical tools installed on our PCAP interactive Touchscreens. With Android OS you can easily customize the display by installing applications directly to it. With the EShare app, you can share, stream, and edit content from any device directly on screen and transform your team meetings into an easy, fast, and seamless interactive session.

  SIGNAL FAILOVER
  FailOver is a feature that automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize several inputs (incl. Browser, Media Player, and Custom) and ensures your content is always actively displayed, assuring active content at all times.

  ANDROID OS
  Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

  TOUCH TECHNOLOGY – CAPACITIVE
  This technology uses a sensor grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because the electrical characteristics of the sensor grid change when a human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human fingers (also latex gloved) and stylus pens.

• Category	Specification
  DISPLAY CHARACTERISTICS
  Diagonal	42.5″, 108cm
  Panel	IPS LED, AG Coating
  Native resolution	3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD)
  Aspect ratio	16:9
  Panel brightness	500 cd/m²
  Light transmittance	84%
  Static contrast	1200:1
  Response time (GTG)	8ms
  Viewing zone	Horizontal/Vertical: 178°/178°, Right/Left: 89°/89°, Up/Down: 89°/89°
  Colour support	1.07G (8 Bits+FRC) (NTSC 72%)
  Horizontal Sync	30 – 135kHz
  Viewable area W x H	941.2 x 529.4mm, 37 x 20.8″
  Pixel pitch	0.245mm
  Bezel colour and finish	Black, matte
  TOUCH
  Touch technology	Bonded PCAP
  Touch points	20 (HID, only with supported OS)
  Touch method	Finger, glove
  Touch interface	USB
  Supported operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
  Palm rejection	Yes
  INTERFACES / CONNECTORS / CONTROLS
  Digital signal input	HDMI x3 (3840×2160@60Hz)
  Monitor control input	RS-232c x1
  RJ45 (LAN)	x1
  IR	x1 (3.5mm stereo mini)
  Audio output	Speakers 2 x 10W
  Monitor control output	RS-232c x1
  IR loop through	x1 (3.5mm stereo mini)
  HDCP	2.2
  USB ports	x2 (2.0 with Multimedia supp.)
  RS-232c	x1
  FEATURES
  Integrated software	Android 8.0, Signal FailOver
  CPU	CA732 + A532
  GPU	MALI G51
  Storage	16GB eMMC
  Memory	2GB RAM + 1GB Embedded
  Extra	Micro SD card slot
  Kiosk mode	Yes
  Max. non-stop operating time	24/7
  Anti image retention	Yes
  Glass thickness	3.4mm
  Glass hardness	6H
  GENERAL
  OSD languages	EN, DE, FR, ES, RU, JP, NL, PL
  Control buttons	Power, Mute, Input select, +, -, Up, Down, Menu
  User controls	Picture (brightness, contrast, sharpness, black level, tint, color, noise reduction gamma selection, color temp., color control, smart power, overscan, reset), screen (zoom mode, custom zoom, reset), audio (balance, treble, bass, volume, max. volume, min. volume, mute, reset), configuration1 (switch on state, panel saving, RS32-routing, boot on source, WOL, RGB range, reset, factory reset), configuration2 (OSD turn off, OSD H position, OSD V position, system rotation, information OSD, logo, monitor ID, heat status, monitor info, HDMI version, reset), advanced option (IR control, power LED light, keyboard control, off timer, date and time, schedule, HDMI with One Wire, auto signal detection, language, OSD transparency, power save, reset), Android settings, display mode
  MECHANICAL
  Orientation	Landscape, portrait

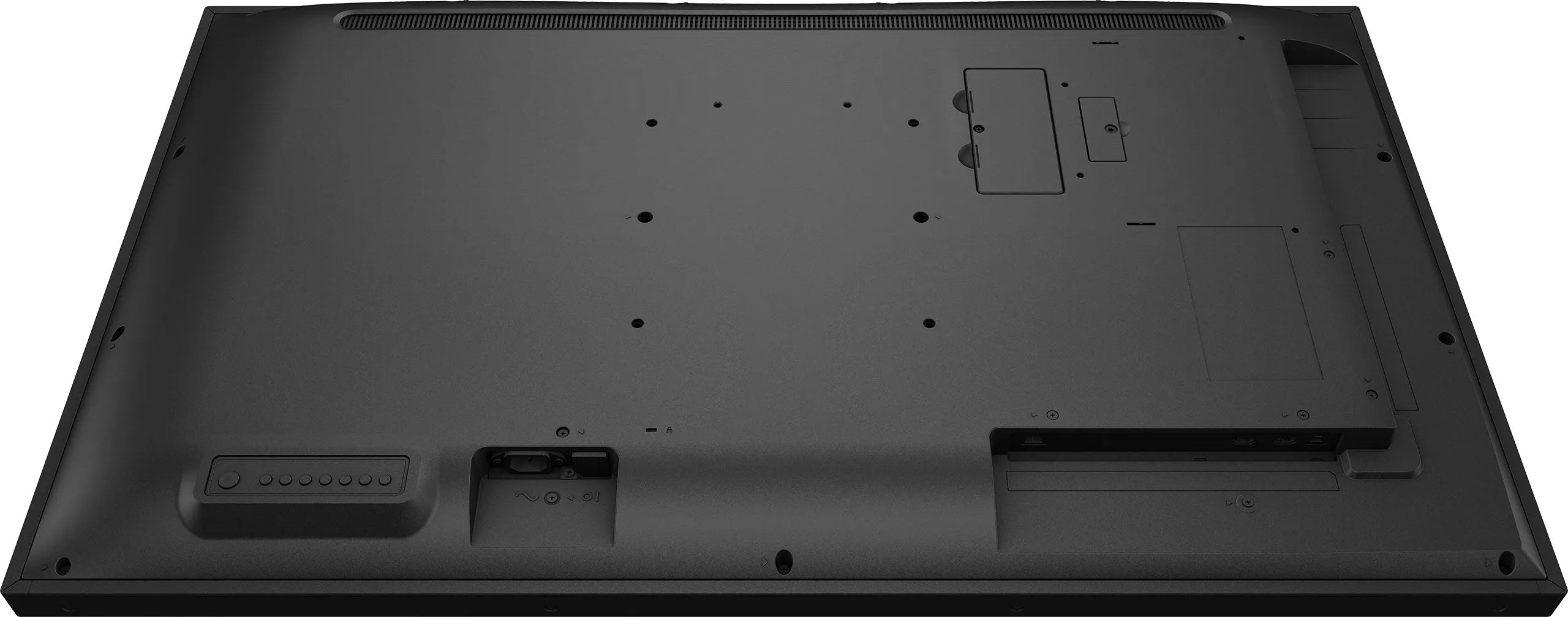

  VESA mounting	200 x 200mm
  Operation temperature range	0°C – 40°C
  Operation temperature range (-°/+°)	-20°C – 60°C
  MTBF	50000 hours (excluding backlight)
  ACCESSORIES INCLUDED
  Cables	Power, USB, HDMI, RS-232c
  Guides	Quick start guide, safety guide
  Remote control	Yes (batteries included)
  POWER MANAGEMENT
  Power supply unit	Internal
  Power supply	AC 100 – 240V, 50/60Hz
  Power usage	75W typical, 1.5W standby, 0.3W off mode
  SUSTAINABILITY
  Regulations	CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH
  REACH SVHC	Above 0.1%: Lead
  DIMENSIONS / WEIGHT
  Product dimensions W x H x D	990 x 578.2 x 70.2mm
  Box dimensions W x H x D	1070 x 702 x 186mm
  Pallet dimensions W x H x D	1140 x 130 x 1080mm
  Weight (without box)	18kg
  Weight (with box)	20.5kg
  EAN code	4948570120468

• Warranty	Product	Cover
  Visioncare	Desktop LCD products (Monitors)  (17″ – 43″)	3 years on-site UK warranty. (Upgrades to 5 years available)
  Touchcare	LCD touchscreen products	3 years repair and return. (Upgrades to on-site & 5 years available)
  LFD	Large Format Displays Standard Warranty	3 years collect and return (Upgrade to swap, installation & 5 years available) Download

  HOW TO ACTIVATE YOUR WARRANTY

  There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.

  Step one – Check that all connections have been properly made.

  Step two – Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.

  Step three – If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number, and date of purchase*. Or fill in the Service Request Form.

  Step four – Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.

  Step five – Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.

  Step six – Please ensure your product is clean and presentable before packaging it in the original box for collection.

  * Proof of purchase may be required

  ON-SITE SWAP OUT

  PIONEERING CUSTOMER SERVICE.

• Item	Downloads
  User manual	Download
  Technical specification	Download
  Drawing	Download
  EShare Network Requirements	Download
