ACASOM 2400-2500M 2.4G 10W 20W 30W 40W 50W 60W GAN Drone Jammer with Circulator FPV Drone Signal Blocker

ACASOM 2400-2500M 2.4G GaN 10W-60W Drone Jammer with Circulator for FPV Drone Signal Blocking

The ACASOM 2400-2500M 2.4GHz GaN Drone Jammer is an advanced FPV Drone Signal Blocker designed to disrupt unauthorized drone signals effectively within the 2.4GHz frequency range. Built with Gallium Nitride (GaN) technology, this jammer offers superior efficiency and stability, making it ideal for high-security applications. With power options ranging from 10W to 50W, it provides flexible and reliable performance for anti-drone measures in sensitive environments, including airports, military facilities, and restricted zones.

Key Specifications:

• Frequency Range: 2400-2500MHz
• Operating Voltage: 28V
• Output Power: Up to 47dBm (customizable from 10W to 50W)
• Flatness: ±0.5dB for stable signal quality
• Current: 4.30A @ 28V, 47dBm
• Efficiency: 45% at 47dBm output
• LED Indicator: Red, indicating operational status
• Operating Temperature: -30℃ to 85℃
• Storage Temperature: -40℃ to 150℃
• Operating Humidity: Less than 95% RH

Design and Connectors:

• RF Port: SMA-F connector for secure and efficient RF output
• Power Connection: 15cm red/black wire for stable power input
• Housing Material: Aluminum shell for enhanced heat dissipation and durability
• Dimensions: 131mm x 53mm x 17mm
• Net Weight: 0.25kg, compact and easy to integrate

Advantages of GaN Technology:

1. High Work Efficiency: GaN technology provides greater efficiency compared to traditional LDMOS, reducing power consumption.
2. Ceramic Package: The ceramic tube shell enhances heat dissipation, improving stability and longevity.
3. Open-Circuit Protection: GaN chips prevent burnout under open-circuit conditions, ensuring durability.

Application and Usage:

Ideal for Drone Shield Systems and FPV Drone Jamming Modules, this 2.4GHz GaN jammer effectively blocks drone signals in the 2400-2500MHz range, providing critical security for areas where drone activity is restricted.

Usage Guidelines:

1. Power Supply: Requires a 28V/5A power source.
2. Heat Dissipation: Recommended to use a heat sink or radiator fan to maintain optimal performance.
3. Connection Sequence: Attach the antenna before connecting the power adapter.

Package Includes:

• 1 x GaN Sweep Signal Source

For bulk purchases or custom production, please contact support@rcdrone.top. ACASOM offers customizable power configurations from 10W to 50W, ensuring smooth integration into any anti-drone or FPV blocking setup for enhanced security and performance.

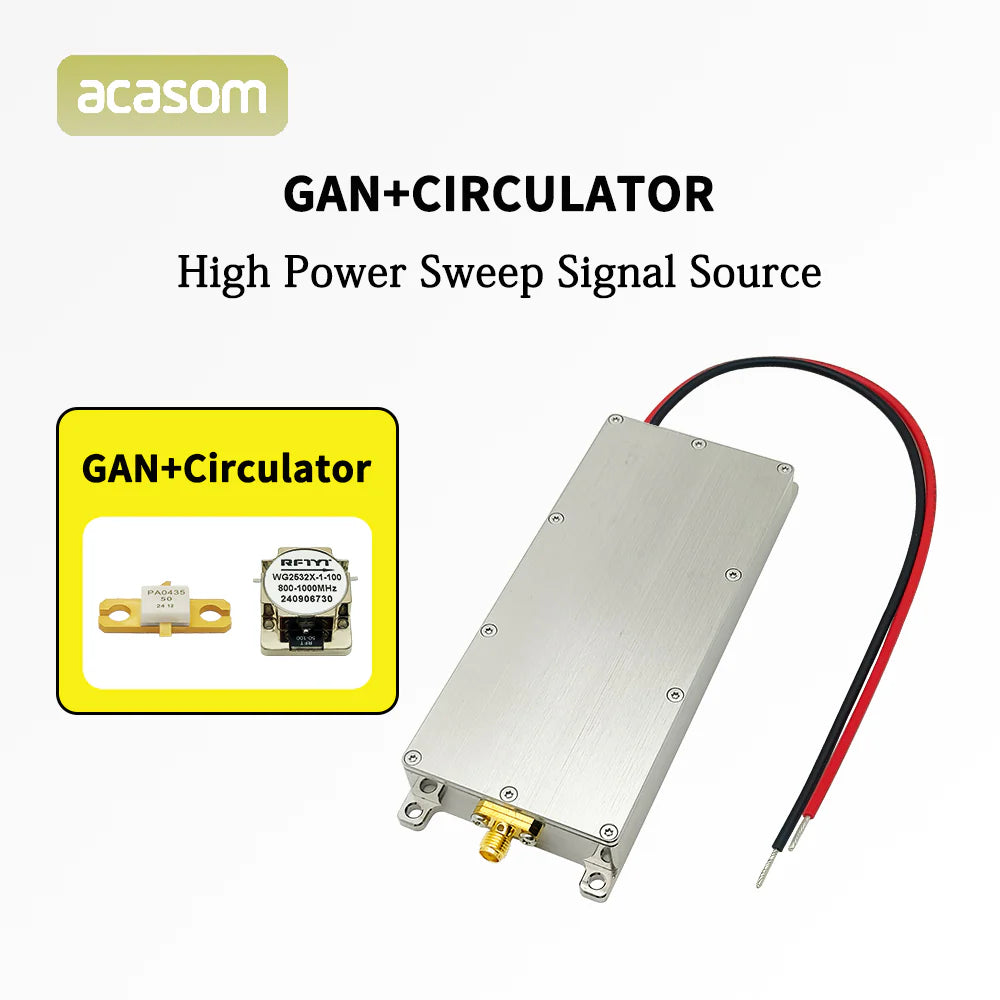

High power sweep signal source for ACASOM GAN cirulator, ideal for testing and analyzing electromagnetic signals.

A high-powered sweep signal source for drone jamming applications. The ACASOM GAN Drone Jammer features a GAN circulator and DC/7R technology. Suitable for WG2532X-1-100 systems, this device offers reliable performance and effective jamming capabilities.

The ACASOM GAN+ Circulator emits a high-power sweep signal, suitable for drone jamming and signal disruption.

The ACASOM GAN Drone Jammer is a high-power sweep signal source with an LED indicator and operates on DC 24V power. The wire length is 2 LCM, making it suitable for various applications.

Acason GAN Circculator high power sweep signal source for drone jamming

ACASOM GAN Drone Jammer features a high power sweep signal source with RF77N and WG2532X-1-100 components, operating at 800-1000 MHz frequency. It includes an Il amplifier and Circulator PA0435 GaN technology.

ACASOM GAN circulator high power sweep signal source ideal for jamming sweeping signals up to 5.3 GHz outputting 7 dBm powerful frequency signal
