Dreameagle X410Z 4-Axis 10L Agricultural Spraying Drone

Dreameagle X410Z Drone Overview

The Dreameagle X410Z 10L Agriculture Drone is engineered for agricultural professionals seeking a reliable and customizable drone solution for crop spraying, fertilization, and pest control. Featuring a 1605mm wheelbase and a foldable frame that expands to 1252×1252×674mm, this frame kit offers a perfect blend of portability, durability, and high performance. With a 10L payload capacity and advanced carbon fiber construction, the Dreameagle X4-10Z 10L Agriculture Drone is designed to handle demanding agricultural operations with ease.

Key Features of Dreameagle X410Z 10L Agriculture Drone

• Brand: Dreameagle
• Model Number: X410Z
• Material: Carbon Fiber
• Product Wheelbase: 1605mm
• Expanded Size: 1252×1252×674mm
• Folded Size: 730×790×750mm
• Arm Size: 37×40mm carbon fiber tube
• Medicine Box Volume: 10L
• Product Weight:
  • Frame weight: 7kg
  • Full load takeoff weight: 25kg
• Spray Width: 3-5 meters (adjustable)



What’s Included?

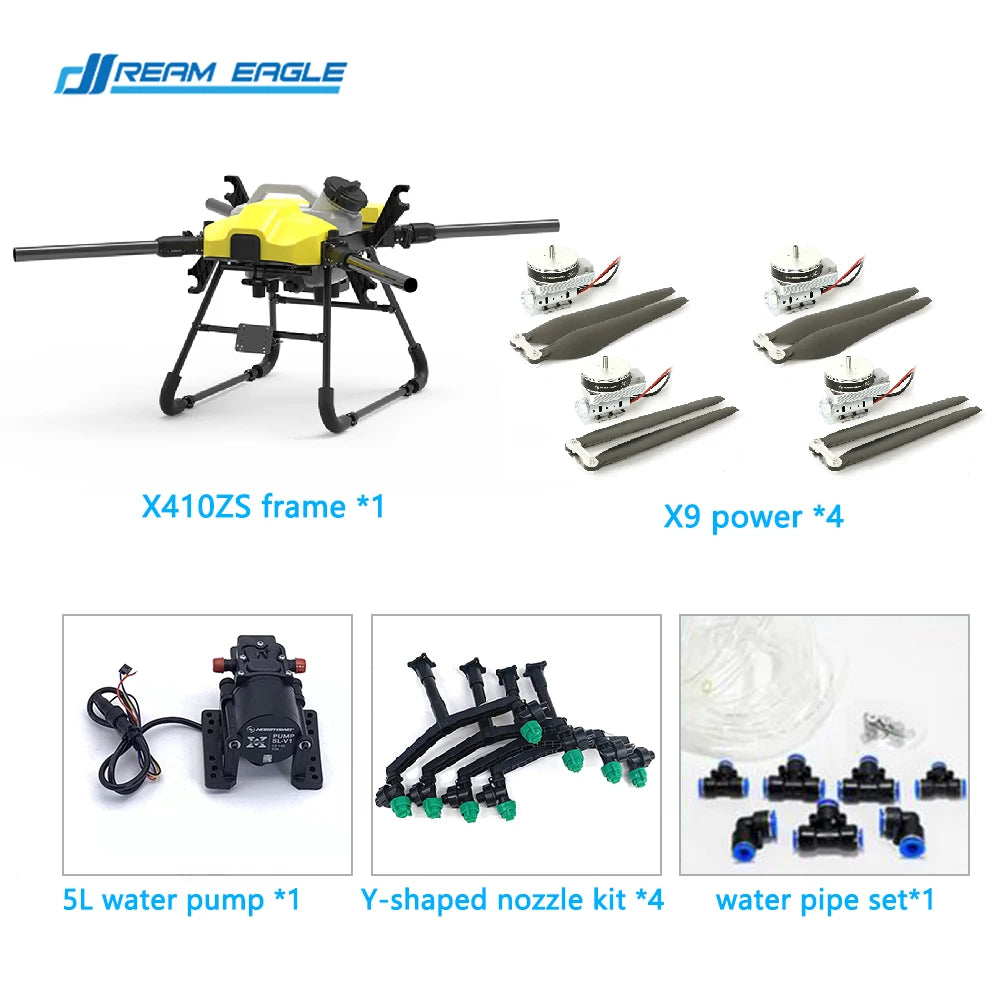

1. X4-10Z Basic Combo

• 10L X4-10Z Drone Frame: 1 unit
• X9 Power System: 4 units
• 5L Water Pump: 1 unit
• Spraying Kit: 1 unit

2. X4-10Z Standard Combo Package

• 10L X4-10Z Drone Frame: 1 unit
• 5L Water Pump: 1 unit
• Spraying Kit: 1 unit
• H12 Remote Controller with Three Modules: 1 unit
• K++ V2 Flight Controller: 1 unit
• X9 Power System: 4 units
• 12S 22000mAh Battery: 1 unit
• 12S Charger: 1 unit

3. X4-10Z Pro Combo Package

• 10L X4-10Z Drone Frame: 1 unit
• 5L Water Pump: 1 unit
• Spraying Kit: 1 unit
• H12 Remote Controller with Three Modules: 1 unit
• K++ V2 Flight Controller + 2 Obstacle Avoidance Sensors + Ground Radar: 1 unit
• X9 Power System: 4 units
• 12S 22000mAh Battery: 2 units
• 12S Charger: 1 unit



The Dreameagle X410Z 10L Agriculture Drone Frame Kit is designed with a modular structure that ensures easy assembly and maintenance. Its front and rear folding quadrotor design makes it compact and portable, perfect for quick deployment in the field. With integrated features like a quick-plug water tank battery, obstacle avoidance radar, and ground defense radar, this frame kit provides the foundation for building a fully functional, high-performance agricultural drone.

---

Specifications Table for Dreameagle X410Z 10L Agriculture Drone

Product Name	X4-10Z Agriculture Drone Frame Kit
Medicine Box Volume	10L
Drone Self Weight	7kg
Take-off Weight	25kg
Spray Width	3-5 meters
Battery	12S 16000mAh/22000mAh
Spraying Efficiency	50 mu/hour
Hover Time	20 minutes (no-load) / 8 minutes (full-load)
Machine Size	1252×1252×674mm (expanded)

---

Why Choose Dreameagle X410Z 10L Agriculture Drone Frame Kit?

1. Customizable and Modular Design: The Dreameagle X410Z 10L Agriculture Drone Frame Kit allows you to build a fully functional agricultural drone tailored to your needs. Its modular components make upgrades and maintenance easy, ensuring long-term usability.

2. Compact and Portable: The Z-shaped folding mechanism enables quick setup and compact storage, making the Dreameagle X4-10Z 10L Agriculture Drone Frame Kit highly portable without compromising on performance.

3. Durability and Stability: Constructed with high-strength carbon fiber, this frame kit offers a robust structure capable of withstanding the challenges of agricultural environments while remaining lightweight.

4. High Efficiency: With a 10L payload capacity and a spraying width of up to 5 meters, the Dreameagle X410Z 10L Agriculture Drone Frame Kit is designed for large-area coverage, improving operational efficiency and reducing labor time.

5. Advanced Safety Features: Equipped with radar systems and an FPV camera, the frame kit provides reliable navigation and obstacle avoidance, ensuring safe and precise operations even in complex conditions.

The Dreameagle X410Z 10L Agriculture Drone Frame Kit is the ideal foundation for building a powerful and efficient agricultural drone. Its blend of flexibility, durability, and performance makes it a standout choice for modern farming needs.
