Description：

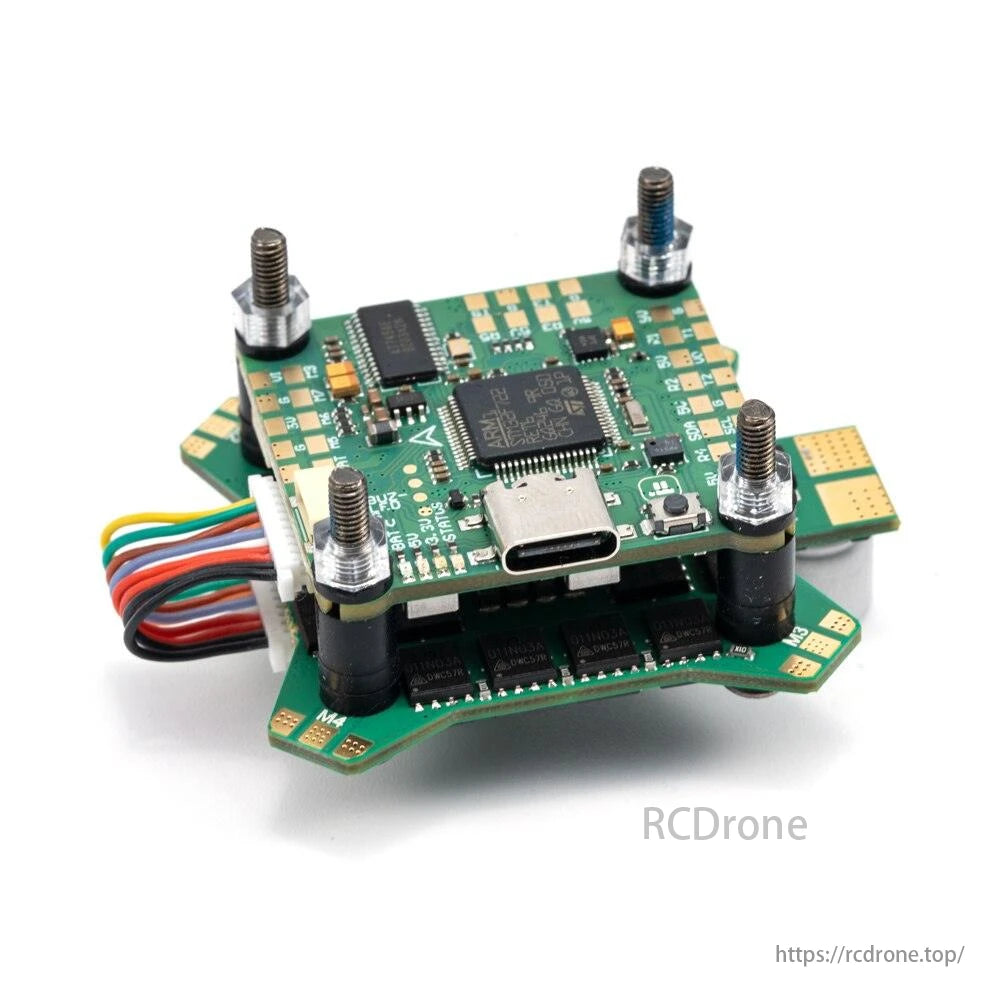

FC // BLITZ F7 V1.1 Flight Controller

Top Features:

• Improved circuit design, better components and lower electrical noise!

• DJI HD VTX Connector (Plug-and-Play / No soldering required)

• FC indicator LEDs for visual debugging

• With LC filter


Specifications:

• MCU: STM32 F722

• Gyro: BMI270

• Barometer: DPS310

• OSD Chip: AT7456E

• Flash: 32MB (Blackbox flash)

• UARTS: 6

• Motor outputs: 4x (SH1.0 connector)

• I2C serial: SDA / SLA pads

• Smartaudio / IRC Tramp VTX protocol supported

• LED controller: Yes

• Beeper pad: Yes

• Firmware target: IFRC-IFLIGHT_BLITZ_F722

• Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter

• Dimensions: 36.5*35 mm

• Weight: 7.8g


Wiring suggestion:

• UART 1 for VTX HD / Analog

• UART 2 for a Receiver

• UART 3/4/5 for GPS or other sensors that require a serial port

• UART 6 for ESC Telemetry


Tips

• 1. F722 MCU has an inner inverter.

• 2. SBUS、CRSF、ELRS、IBUS、DSM ETC… can be connected to any unused UART_RX，we suggest you connect to Uart_RX2

• 3. Frsky SmartPort，Tramp & Smartaudio can be connected to any unused UART_TX，we suggest you connect to Uart_TX1

• 4. F.port can be connected to any unused UART_TX，we suggest you connect to Uart_TX2

ESC // BLITZ E45S 4-IN-1 2-6S ESC

Specification:

• Supports: DShot150/300/600/MultiShot/ OneShot etc.


• Mounting Holes: 30.5*30.5mm/Φ4mm

• Supports 2-6S lipo input


• Telemetry Output: NO

• Target: QH-40 16.7

• Current sensor: Yes

• Constant: 45 Amps

• Current rate: 200

• Burst: 55 Amps


• Weight: 14.7g

• MCU: BB21

• BEC: NO
