SPECIFICATIONS

Brand Name: ACCTEK

Hign-concerned Chemical: None

Model Number: AKH-2000 Fiber Laser Robotic Welding Machine

CNC or Not: CNC

Is Smart Device: YES

Controller: Au3tech

Condition: New

Certification: CE

Product name: Fiber Laser Robotic Welding Machine

Laser power: 1500W/ 2000W/ 3000W

Maximum arm span: 2100mm

Main part: Laser welding machine+robotic arm

Axes of robotic arm: 6 axis

Wrist rated payload of robotic arm: 10kg

IP code of of robotic arm: IP56 Dust-prof and water-proof

Repeated positioning accurancy: ±0.05mm

Welding Method: Robotic arm automatic welding

Attention:

• Different works need different solutions.

• Before you make payment, please contact us for suitable solution

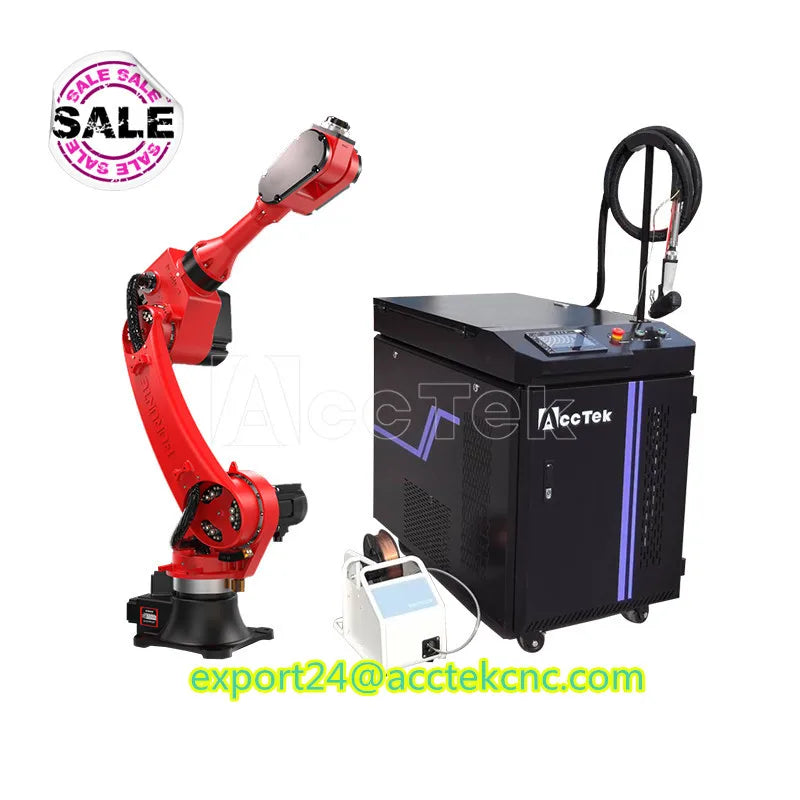

Raycus MAX JPT BWT 1500W 2kw 3kw Automatic 6 Axis Robot Arm Fiber Laser Robotic Welding Machine For Corner Welding Laser Welders

What’s the robotic arm welding machine:

Laser welding robot is a combination of laser technology and robotics. The laser welding robot system is a 6 axis robot with high flexibility, which can complete the welding of complex workpieces, and it can adapt to the changing conditions of the workpieces. The laser system can use welding lenses, cutting lenses, scanning welding lenses and even laser cladding heads. Because of the magnetic coupling connection method, different lenses can be quickly switched to each other. Laser welding robot is also known as robotic laser welding machine, robotic laser welder, laser beam welding robot, laser beam welding is the full form of LBM, so you can also call it as LBW robot.

Features of Fiber Laser Robotic Welding Machine:

1. Robotic laser welding machine is a type of 3D industrial robot that is more commonly used nowadays.

2. It has high welding accuracy, high speed, and narrow welding seam, which is very popular in the welding field.

3. As we all know, traditional welding operations are relatively harmful to the human body, including MIG (Metal Inert Gas) welding and TIG (Tungsten Inert Gas) welding. MIG welder and TIG welder are arc welding, and the quality of the laser-welded project cannot be guaranteed.

4. Many businesses start to use high-performance laser welding robots instead of manual welding operations.

5. The robotic laser welder has high production efficiency, high welding strength, narrow welding seam, and less deformation of the workpiece.

Main Details of Fiber Laser Robotic Welding Machine:

Technical Parameters of Fiber Laser Robotic Welding Machine:

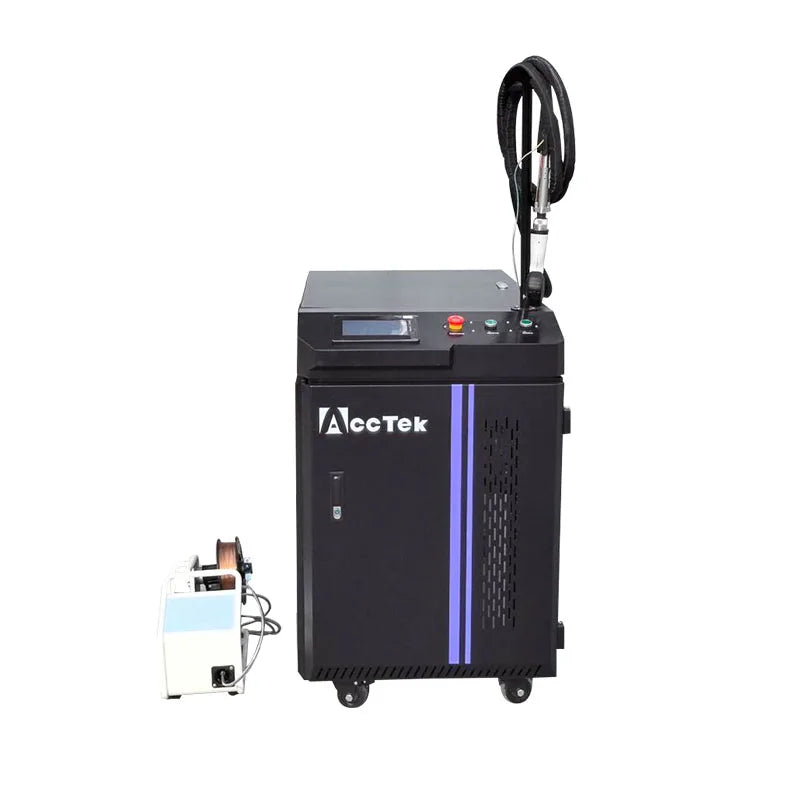

Part 1 – Laser Welding Machine

Model	AKH-1500	AKH-2000	AKH-3000
Laser Power	1500W	2000W	3000W
Laser Wavelength	1080 nm
Fiber Cable Length	10 m
Way of Working	Continuous
Welding Type	Robotic arm welding
Speed Range of Welding Machine	0-120 mm/s
Cooling Water Machine	Industrial Constant Temperature Water Tank
Working Environment Temperature Range	15~35°c
Maximum Scanning Width	100mm
Recommended Welding Thickness	0.5-3 mm	0.5-4 mm	0.5-6 mm
Welding gap requirments	≤0.5 mm
Operating Voltage	220V 1P, 50/60Hz	220V 1P, 50/60Hz	380v 3P, 50/60Hz

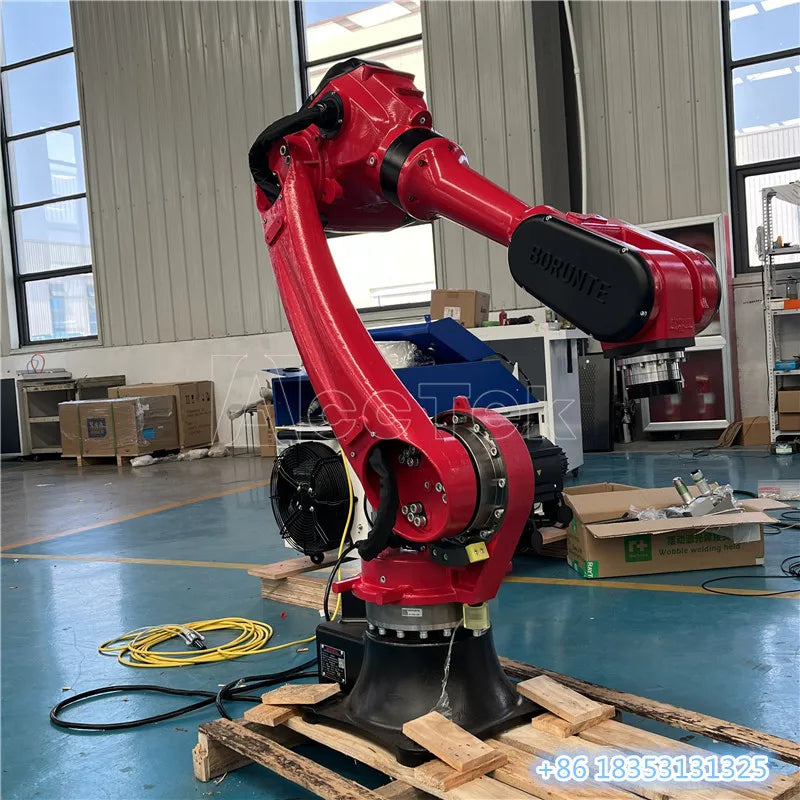

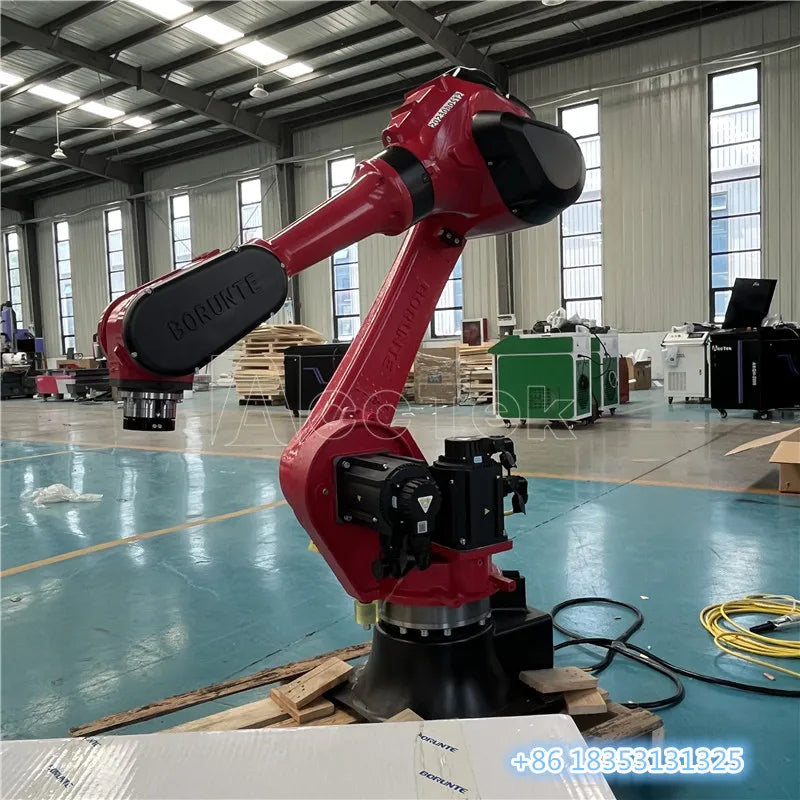

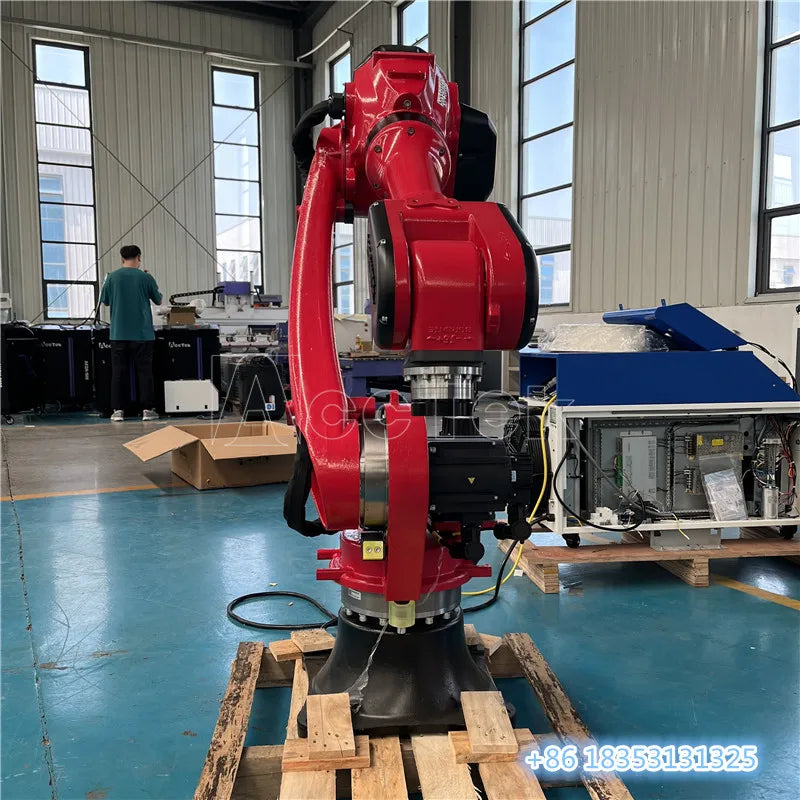

Part 2 – Robotic Arm

Model	BRTIRUS2110A
Axes	6 axis
Loading ability	10 kg
Maximum arm span	2100 mm
MAX Speed	J1	110°/s
J2	146°/s
J3	134°/s
J4	273°/s
J5	300°/s
J6	336°/s
Motion range	J1	±155°
J2	-90°（-140°Lower probe adjustable）/+65°
J3	-75°/+110°
J4	±180°
J5	±115°
J6	±360°
Allowable torque	J1	52N*M
J5	33.6N*M
J6	16.8N*M
Allowable moment of inertia	J4	0.664KG*M2
J5	1.12KG*M2
J6	0.155KG*M2
Vulnerable parts	Timing belt	Tooth shape 3M, 100 teeth, 6mm wide, reinforced
Timing belt	Tooth shape 3M, 145 teeth, 6mm wide, reinforced
Repeated positioning accuracy	±0.05 mm
Weight	230kg

Application of Fiber Laser Robotic Welding Machine:

AccTek welding robot arm can be used in construction machinery manufacturing, automobile manufacturing, electronic equipment, shipbuilding, metal doors &windows, furniture and other fields.

1. Welding material:

I is not only used for welding stainless steel, aluminum, copper, gold, silver, chromium, nickel, titanium and other metals or alloys, but also for welding various materials, such as copper-brass, titanium-gold, titanium-molybdenum, nickel-copper and so on.

2. Welding range:

1500W: 0.5~3mm carbon steel, 0.5~3mm stainless steel, aluminium alloy 0.5~2mm, brass 0.5~2mm

2000W: 0.5~4mm carbon steel, 0.5~4mm stainless steel, aluminium alloy 0.5~3mm, brass 0.5~3mm

3000W: 0.5~6mm carbon steel, 0.5~6mm stainless steel, aluminium alloy 0.5~4mm, brass 0.5~4mm

3. Unique welding function:

Hand-held welding can meet the requirements of square tube welding, round tube butt welding, plate tube welding,etc. The machine can be customized for all types of tooling.

After-Sale Services of Fiber Laser Robotic Welding Machine:

1) 3-year machine warranty; 2-year laser generator warranty.  The machine with main parts(excluding the consumables) shall be changed free of charge, when if there is any problem during the warranty period.

2) Lifetime maintenance free of charge.

3) Free training course at our plant.

4) We will provide the consumable parts at an agency price when you need replacement.

5) 24 hours of online service each day, free technical support.

6) Machine has been adjusted before delivery, operation disk and manual was included

7) Our staff can be sent to your company to install or adjust if necessary.
