DIY Fiber Laser Cutter Electrical Parts Kit – Customizable 1.5kW-30kW for Flat-Sheet, Tube & Combo Cutters

Special Reminder

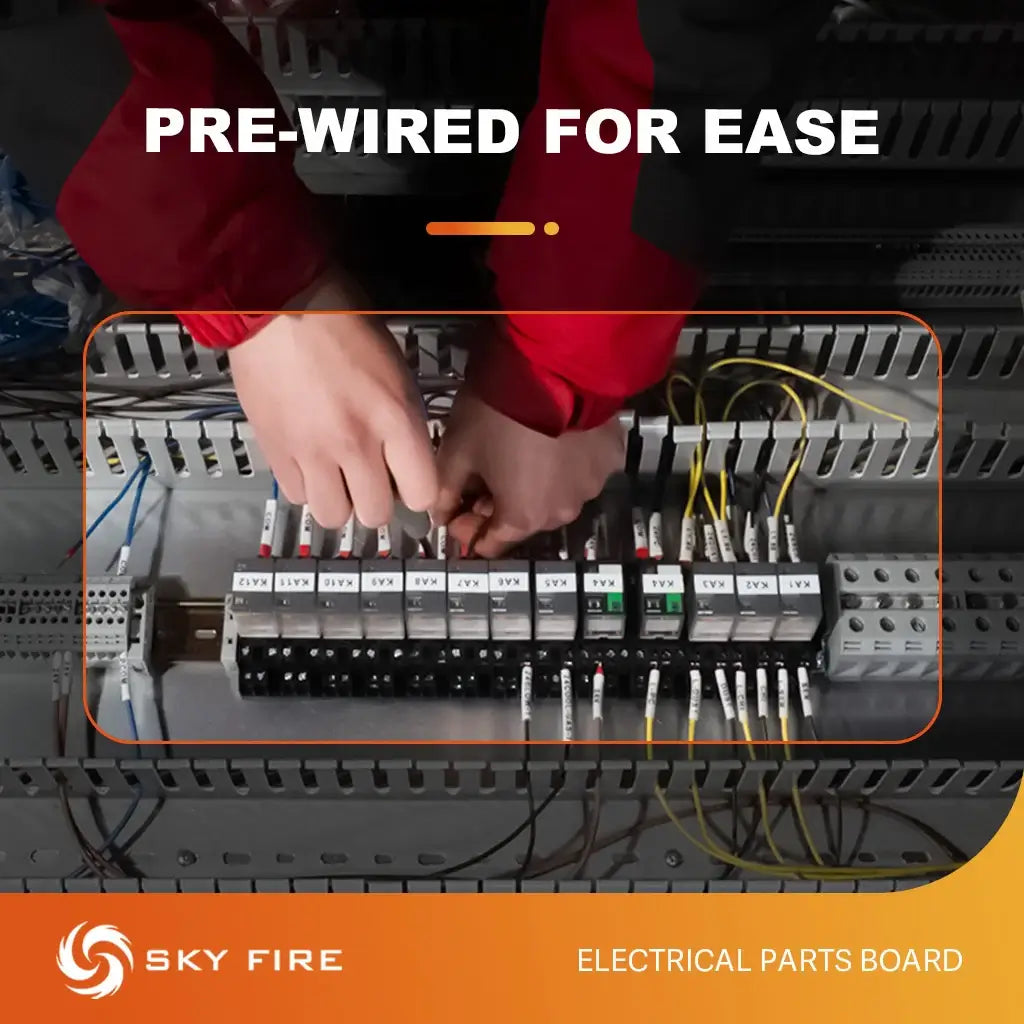

The costs of Electrical Parts Board include electrical parts (EXCLUDING servo drivers and the controller) and its wiring service.

If you don’t understand circuit principles but still want to DIY the electrical part, we provide DWG files to help you easily understand the circuit layout and complete the assembly.

Product Overview:

• A highly customizable electrical parts kit designed for DIY fiber laser cutters, perfect for building or upgrading your project.
• Offers flexible configurations to meet the needs of hobbyists and professionals with varying power and cutting requirements.
• Ensures high precision, reliability, and efficiency for a wide range of industrial and DIY applications.

Power Options:

• Available power ranges: 1.5kW, 3kW, 6kW, 12kW, 30kW, catering to different cutting intensity needs.
• 1.5kW and 3kW ideal for small DIY projects, while 6kW, 12kW, and 30kW suit medium to large or professional cutting tasks.

Controller Types:

• Raytools XC Series Controllers:
  • Raytools XC3000S: Optimized for 1.5-3kW flat-sheet cutters, offering stable performance.
  • Raytools XC3000Plus: Designed for 6kW flat-sheet cutters, providing enhanced control capabilities.
  • Raytools XC6000: Tailored for 12kW flat-sheet cutters, handling high-power demands.
  • Raytools XC4000 T2: Optimized for dual chuck tube cutters, ensuring precise tubular material processing.
  • Raytools AX 3000T: Designed for sheet & tube combo cutters, offering versatile functionality.
• Fscut Series Controllers:
  • Fscut 2000E: Suitable for 1.5-3kW flat-sheet cutters, cost-effective and efficient.
  • Fscut 4000E: Designed for 6kW flat-sheet cutters, delivering robust control.
  • Fscut 8000E: Tailored for 12-30kW flat-sheet cutters, ideal for high-load applications.
  • Fscut 3000DE-M: Optimized for tube cutters, ensuring precision and reliability.
  • Fscut 3000DE-M: Designed for sheet & tube combo cutters, offering comprehensive functionality.

Servo Pack Types:

• Leadshine L6 Servo Pack: High-performance servo system compatible with Raytools XC controllers, providing excellent dynamic response and accuracy.
• Fscut S9 Servo Pack: Reliable servo solution perfectly matched with Fscut controllers, ensuring smooth operation.

Cutter Types:

• Compatible with three cutter types to meet diverse needs:
• Flat-Sheet Cutter: Designed for flat material cutting, with power options of 1.5kW, 3kW, 6kW, 12kW, 20kW, and even 30kW.
• Tube Cutter: Optimized for round and shaped tubular materials, and nearly all other Saddle, K-shaped, Y-shaped, V-shaped, and X-shaped materials as well, ensuring precise cuts.
• Sheet & Tube Combo Cutter: Capable of handling both flat and tubular materials.

Target Audience:

• Ideal for: DIY enthusiasts, engineers, and small business owners seeking cost-effective, customizable cutting solutions.
• Perfect for self-built cutter projects or upgrading existing equipment to enhance productivity and precision.

The circuit section contains 6 identical-sized buttons, each with a diameter of 22mm.
