Raytools XC4000 T2 Controller for laser tube cutting

Product Description

The Raytools XC4000 T2, also known as AX4000, is a professional 2-chuck tube cutting solution that is compatible with X/Y/Z/U axis servo systems through EtherCAT.

The Raytools XC4000 T2 controller is a versatile solution for laser tube cutting, supporting double-chuck configurations. This advanced controller is designed to meet a variety of tube cutting needs, offering compatibility with round tubes, square tubes, and elliptical tubes in its standard version.

Cutting Capabilities: The XC4000 T2 is equipped with comprehensive cutting capabilities for both common and special-shaped tubes, including round, square, rectangular, elliptical, angle iron, channel steel, and L-shaped steel. The built-in nesting software ensures precise and efficient performance across all tube shapes, with no additional dongles required.

Discover our laser tube cutting solutions with RayTools in action. This video will show you how our advanced technology enhances precision and efficiency in tube fabrication.

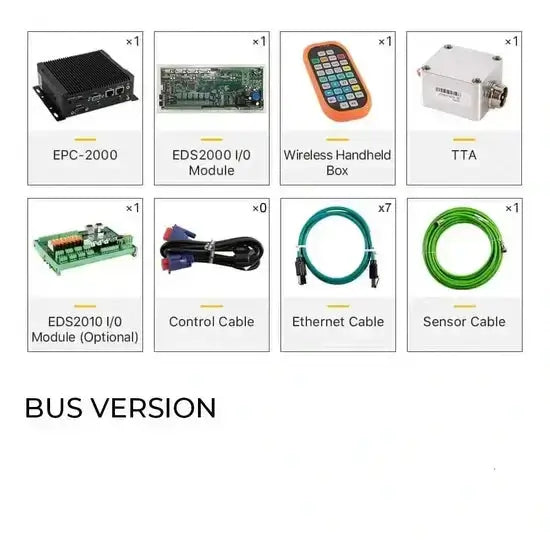

What’s in the box :

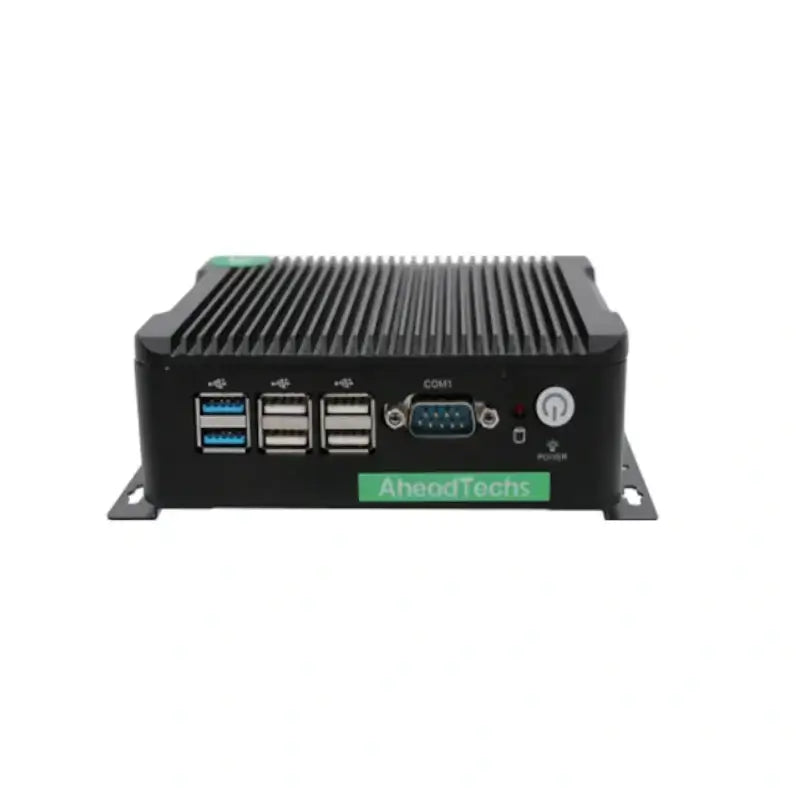

• EPC-2000
• EDS2000 I/O Module
• Wireless Handheld Box
• TTA
• EDS2010 I/O Module (optional)
• Control Cable
• Ethernet Cable
• Sensor Cable
• Nesting Software Dongle (optional)

Perfect DUO in Bundle:

The XC4000 T2 and BT220-3D (2000w) make an ideal combination for novice users looking to build their own tube laser cutter. With a bundle price 144 USD lower than purchasing each component separately, this is a budget-friendly option for getting started.

Shipping and Return Policy

• Shipping: Orders typically ship within 3-4 business days. Delivery times may vary based on location.
• Returns: 30-day return policy on items in new, unused condition. Contact customer support for returns. Restocking fee may apply.



Key Features:

Precision Center Search: Real-time offset compensation ensures accurate tube centering, facilitating improved clamping and piercing accuracy.

Versatile Cutting Capability: Suitable for L, U, H profiles, as well as circular and rectangular tubes. Individual corner processing enhances corner cutting quality.

Comprehensive Auxiliary Support: Supports auxiliary axes and cylinders such as support and dust removal systems, enabling automatic material handling and enhanced operational efficiency.

Flexible Processing Options: Compatible with manual G code modification for tailored processing needs. Supports graphic and NC file imports in SJ or STEP formats, allowing for sorted or directed cuts.

Enhanced Automation: Features auto feeding capabilities for continuous operation and seamless integration with third-party CAM software.

High-Speed Communication: Utilizes EtherCAT protocol with a real-time refresh cycle of 1ms, ensuring precise control and responsiveness.

Exceptional Accuracy and Speed: Offers path accuracy of 0.005mm, positioning accuracy of 0.001mm, and repeated positioning accuracy of 0.002mm. Achieves maximum acceleration of 2G, cutting speed up to 40mm/min, and rapid dry motion up to 100m/min.

Safety and Monitoring: Includes overload protection and real-time monitoring of axis moment, with automatic servo alarm activation to ensure operational safety.

User-Friendly Features: Logs alarm information for operator reference and incorporates close-loop arc detection and torque monitoring for efficient commissioning and maintenance.



Optional Add-ons:

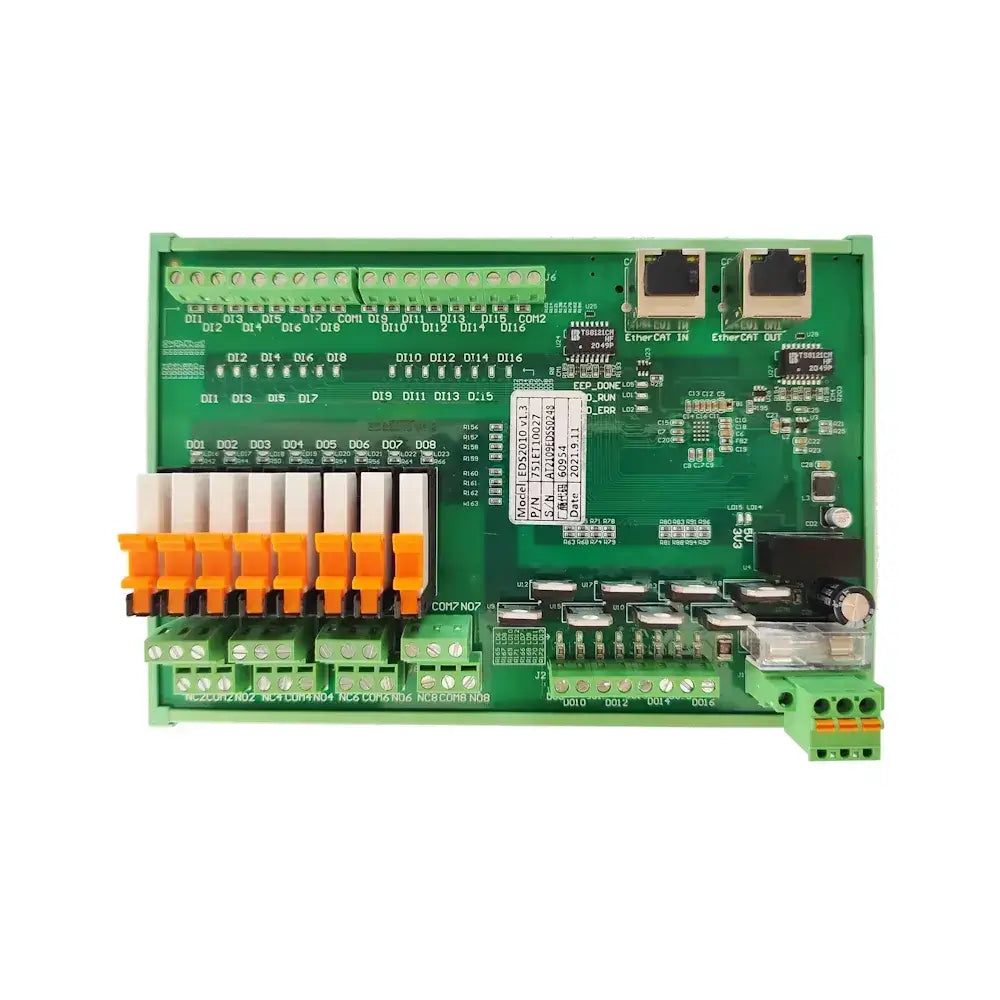

· EDS—2010 V1.3 Expansion IO Card: The 2010 Expansion IO Card integrates 16 digital input ports and 16 digital output ports. It also has stronger anti-interference capabilities, ensuring high communication stability.

Download for User Manual:

User Manual- XC4000T Tube Cutting System

System Components:

• HMI PC (Master): EPC-1010 (Windows)

  • Analog Input: 4 channels

• Engine PC (Slave): EPC-2000 (Linux)

  • Analog Output: 4 channels

• I/O Module: EDS2000

  • PWM: 2x24V/2x5V

• Extended I/O Module: EDS2010

  • General Axis Interface (Pul/Dir): 4 (X/Y/Y1/Z)
  • Digital Input: 40 channels
  • OC Output (24V): 16 channels
  • F Axis Interface (Auto Focus): 1 channel
  • Relay Output: 8 channels
  • Transistor Output: 8 channels

Communication:

• EtherCAT protocol

Software:

• Tube Cut software + nesting



The pulse Version Wiring

The bus Version Wiring
