The XC6000 Flat High-Power Laser Cutting CNC System
$48.99
The XC6000 Flat High-Power Laser Cutting CNC System is a high-performance control system designed for flat high-power laser cutting, supporting both EtherCAT bus servo and pulse servo. It features unique functions such as non-contact piercing, piercing slag removal, common-edge overcut, vibration suppression, corner starting, and seamless micro-joint cutting.1.Technical DataComponentSpecificationHMI PC…
The XC6000 Flat High-Power Laser Cutting CNC System is a high-performance control system designed for flat high-power laser cutting, supporting both EtherCAT bus servo and pulse servo. It features unique functions such as non-contact piercing, piercing slag removal, common-edge overcut, vibration suppression, corner starting, and seamless micro-joint cutting.
1.Technical Data
|
Component |
Specification |
|
HMI PC (Master) |
EPC-1020 (Windows) |
|
Engine PC (Slave) |
EDM3000 (Linux) |
|
I/O Module |
EDS3020 |
|

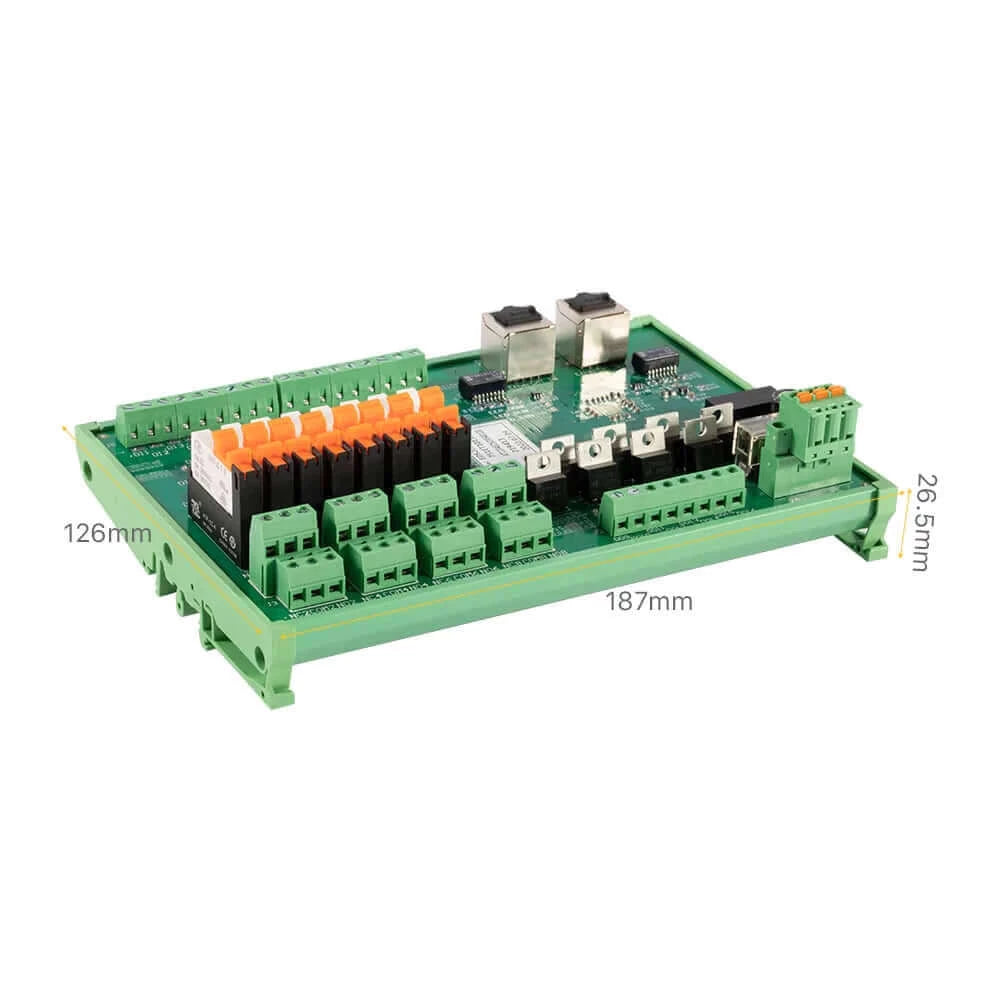

Extended I/O Module |
EDS2010/2011 |
|
Digital Input |
44 |
|
OC Output (24V) |
24 |
|
Relay Output |
8 |
|
Transistor Output |
8 |
|
Relay Output (Z axis) |
1 |
|
Analog Output |
4 |
|
PWM |
1x24V/1x5V |
|
F axis Interface (Auto Focus) |
1 |
|
Height Sensor Interface |
1 |
|
Communication |
EtherCAT |
|
Software |
2D Cut software + nesting |
2.Features
(1) Vibration suppression
(2) Edge tracking
(3)Intelligent obstacle avoidance
(4)Non-contact piercing
