VOTOL Controller EM80GTSP LIN Controller Rated 72V 60A Boost 100A Programmable Controller for 4kW Electric Scooter Motor

EM series controller is sine wave type controller, which is brushless DC controllerwith flux-weakening. Generally, it matches well with QS Motors, if you want to match with new brand motor, some parameters should be tested by yourself.

P.S. If you have any confused about the shipping cost, please feel free to contact with us.

Also could place order but don’t pay first, then we could adjust the price.

ATTENTION：Please note the matched motor parameters when placing the order.

In this way, we can adjust the controller to the best condition for the customer before delivery.

1/If it is matching hub motor, please tell us the motor speed, polar number, motor size and model;

2/If it is matching mid drive motor, please tell us the motor power.

We recommend to match Votol controller with QSMOTOR.(It may not work properly with other brands motors)

One set including below kits

1. 1pcs X EM80GTSPSine WaveLINMotor Controller

2. 1pcs USB LIN Programmable Cable

3. 1set plug-in(match with controller harness plug)

4. 1pcs manual&software link for download

Key Features

1).The materials are imported.

2). With the aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board

3). Small in size

4). High efficiency, low temperature rise, small running current

5). With flux weakening function

Product Description

EM80GTSP is new LIN motor controller, and more cost effective with waterproofing grade IP65, suit for 4kW motors.

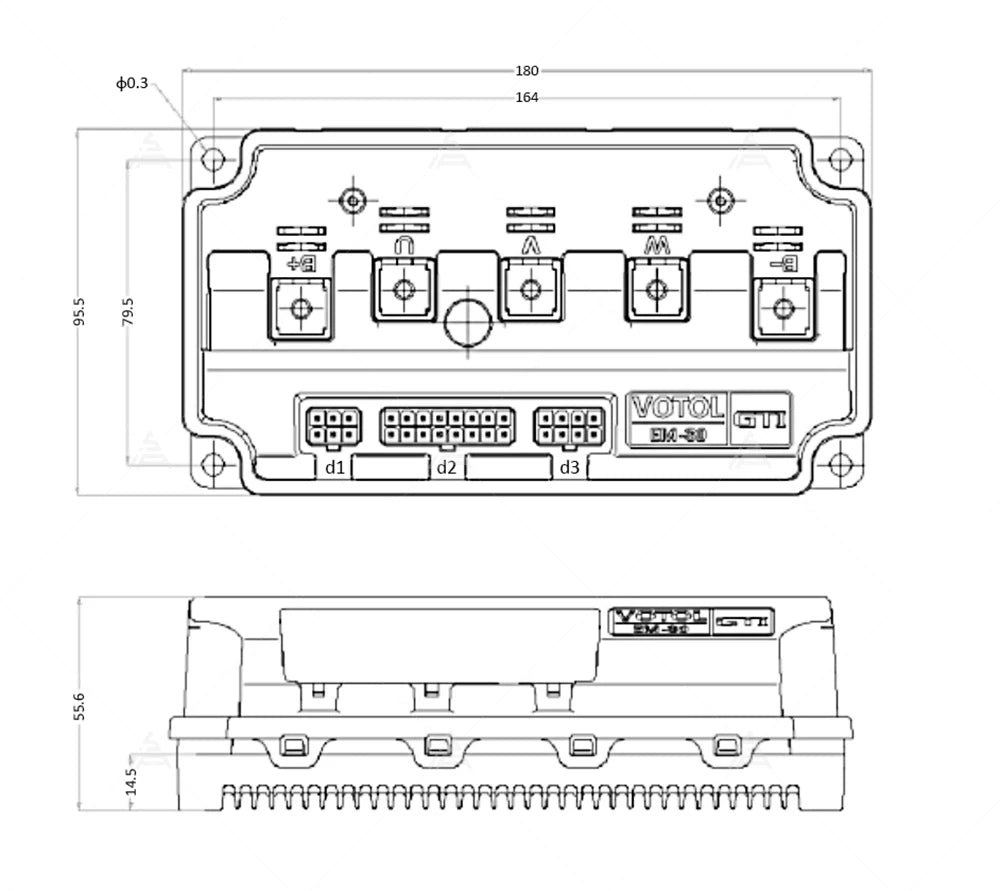

Drawing

Debugging Cable

Software interface（PC）

Wiring Diagram

For the detail of wiring manual, pls contact our online service.

Programmable Software & User manual (Before you received the controller)

Pls. Contact with sales to get the link and password to download the manuals and software before/when you got the controllers.
