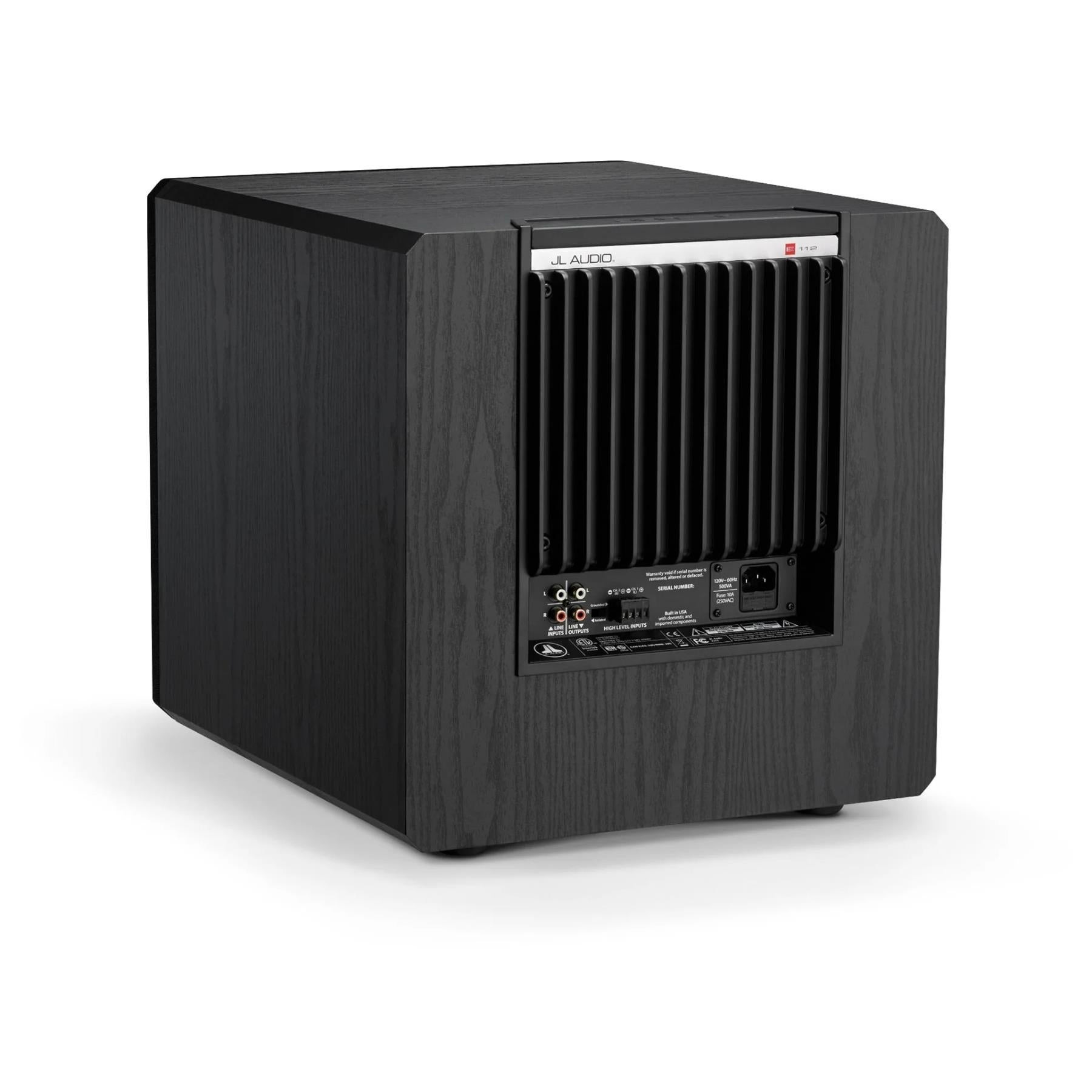

JL Audio E-Sub e112-ASH Black Ash 12″ Powered Subwoofer

JL Audio E-Sub e112 Powered Subwoofer with 12-inch Subwoofer, 1500 watts

JL Audio E-Sub e112 Powered Subwoofer. Crafted with cutting-edge technology and precision engineering, this subwoofer delivers unparalleled sound quality, power, and value across a variety of applications.

JL Audio E-Sub e112 Key Features:

• Exclusive DMA technology optimizes motor strength for linear behavior over a wide excursion range, ensuring faithful signal reproduction at any listening level.
• Extreme mounting depth enhances mechanical stability, reduces distortion, and improves long-term reliability.
• Compact, lightweight switching amplifier with regulated power supply delivers ample, clean power for optimal performance.
• Studio-grade signal processing and convenient top-panel controls offer easy adjustments for a tailored listening experience.
• Versatile connectivity options, including analog inputs for unbalanced line-level signals or speaker-level signals, and dedicated line outputs for seamless integration into any setup.
• True two-way, 4th order Linkwitz-Riley active crossover ensures precise signal separation and low-latency processing for critical applications.
• Precision-built in JL Audio’s U.S. factory, each E-Sub is individually performance-verified and tested for years of reliable use.

JL Audio E-Sub e112 Specifications:

• Enclosure Type: Sealed
• Frequency Response (Anechoic): 22 – 118 Hz (±1.5dB)
  • -3 dB at 21 Hz / 120 Hz
  • -10 dB at 17 Hz / 153 Hz
• Effective Piston Area (Sd): 84.4 sq in / 0.0545 sq m
• Effective Displacement: 235 cu in / 3.9 L
• Amplifier Power: 1500 W RMS short-term
• Power Mode(s): Off, On, or Automatic (Signal-Sensing)
• Unbalanced Inputs: Stereo or Mono (two RCA jacks)
• Speaker/High-Level Inputs: Stereo or Mono (removable plug)
• Input Grounding: Isolated or Grounded
• Level Control: Variable, from full mute to +15dB over reference gain
• Filter Mode(s): Low-Pass
• Filter Slope(s): 24 dB/octave
• Filter Frequency Range: 25 Hz – 130 Hz
• Filter Defeat Function: Yes
• Polarity: 0 or 180 degrees
• Phase: Variable, 0- 280 degrees, referenced to 80 Hz
• Line Outputs: Stereo or Mono (two RCA jacks), High-Pass or Pass-Through
• Width (W): 15.5 in / 394 mm
• Height (H): 16.23 in / 412 mm
• Depth (D): 18.39 in / 467 mm
• Net Weight: 73.5 lb / 33.3 kg

Upgrade your sound system with the JL Audio E-Sub e112 for immersive bass performance that redefines your listening experience.

JL Audio E-Sub e112 Downloads

JL Audio E-Sub e112 Manual
