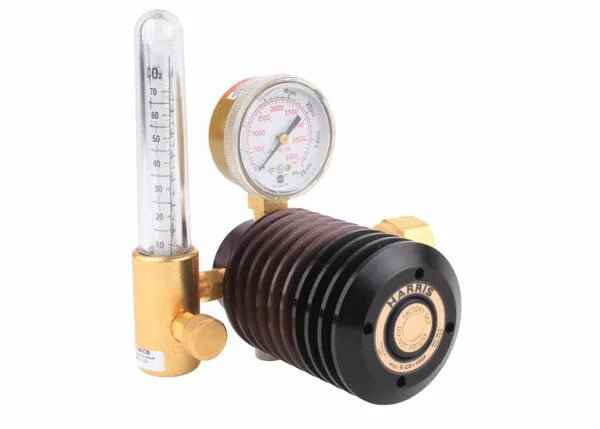

Harris Model 6S-CD-80F-320 Single Stage Flowmeter Regulator – 3100096

Harris Model 6S-CD-80F-320 Single Stage Flowmeter Regulator – 3100096

Model 6S is a compact, competitively priced, Single Stage version of our heavy duty Two Stage high flow CO2 flowmeter Regulator Designed specifically for CO2 applications where CO2 freeze-up cannot be tolerated. Its sensitive needle valve permits highly accurate flow settings. It requires no electrical power.

Features

• Designed specifically for carbon dioxide applications without freeze-up.
• Regulator is compensated at 85 PSIG (6 Bar)
• Multi-finned aluminum black barstock body and black anodized aluminum bonnet design provides a high rate heat transfer into the Regulator.
• Neoprene diaphragm for better pressure control
• 2 in. Gold painted steel dual scale easy-to-read gauges (psi/kPa)
• One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
• Durable cover and easy-to-read flow tube
• Provides accurate flow-control 15-20 SLPM
• Sensitive needle valve for fingertip control permits highly accurate flow settings
• Body design provides a high rate of heat transfer without electrical power

3100096
